HMC624ALP4ETR - Analog Devices

Description: 0.1 GHz to 6.0 GHz, 0.5 dB LSB, 6-Bit, GaAs Digital Attenuator

Download HMC624ALP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

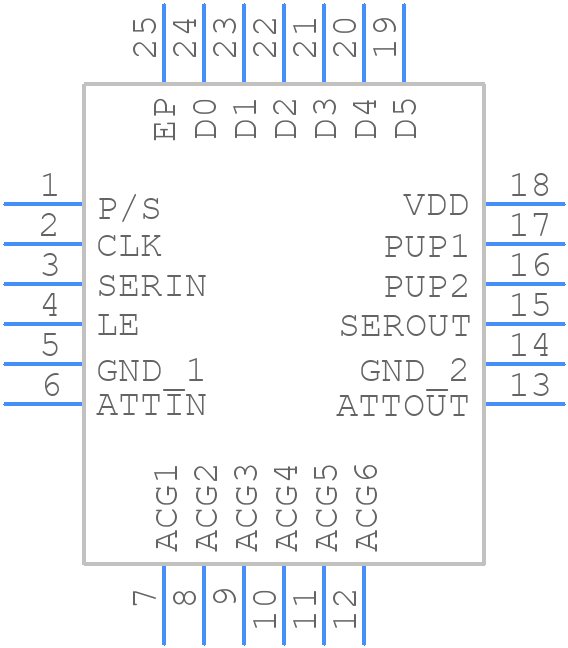

HMC624ALP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC624ALP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-16)
click to zoom
3D Models
HMC624ALP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-16)
click to zoom

HMC624ALP4ETR Details

  • Manufacturer Part Number:

    HMC624ALP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    3.8 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    3 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

HMC624ALP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC624ALP4ETR requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated. A decoupling capacitor of 0.1uF to 1uF should be placed close to the device.
  • The HMC624ALP4ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC624ALP4ETR has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and the clock signal is synchronized with the device's clock input.
  • The typical current consumption of the HMC624ALP4ETR is around 350mA at 3.3V and 500mA at 5V, but this can vary depending on the specific application and operating frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC624ALP4ETR Overview

Use the download button to access the HMC624ALP4ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC62, or try a keyword search, such as RF/Microwave Attenuators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
