HMC641LP4E - Analog Devices

Description: Analog Devices Hittite HMC641LP4E, RF Switch Circuit 20GHz Single SP4T 30dB Isolation pHEMT 24-Pin QFN

Download HMC641LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

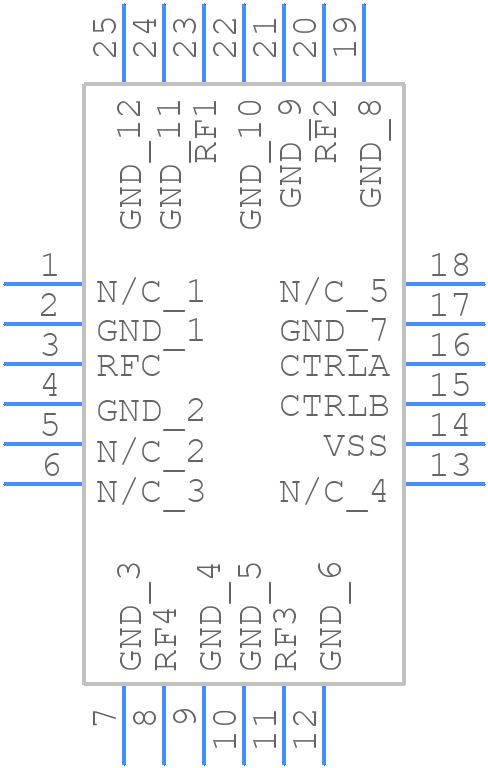

HMC641LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC641LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
HMC641LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

HMC641LP4E Details

  • Manufacturer Part Number:

    HMC641LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    15 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    4.2 dB

  • Isolation-Min:

    30 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.088 µs

  • Operating Frequency-Max:

    20000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    -5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.29

HMC641LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a Smith chart to design and optimize the matching networks for maximum gain and efficiency.
  • Follow the recommended biasing and tuning procedures outlined in the datasheet. Use a variable DC power supply to set the bias voltage and current. Use a spectrum analyzer to monitor the output signal and adjust the tuning screws for optimal performance.
  • Monitor the device's junction temperature, voltage, and current to ensure they are within the recommended limits. Use a thermal sensor and a voltage/current monitor to prevent overheating and overvoltage/overcurrent conditions.
  • Handle the device in an ESD-protected environment. Use an anti-static wrist strap and mat. Store the device in an anti-static bag or container. Follow proper ESD handling procedures during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC641LP4E Overview

Use the download button to access the HMC641LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC64, or try a keyword search, such as RF/Microwave Switches
