HMC646LP2E - Analog Devices

Description: 40W SPDT Failsafe Switch SMT, 0.1 - 2.1 GHz

Download HMC646LP2E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

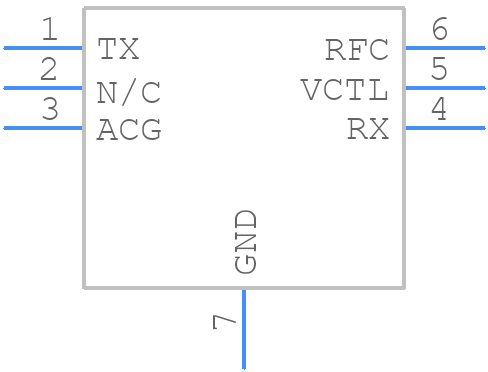

Symbol
HMC646LP2E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC646LP2E - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - HMC653LP2E
click to zoom
3D Models
HMC646LP2E - Analog Devices - 3D model - Small Outline No-lead - HMC653LP2E
click to zoom

HMC646LP2E Details

  • Manufacturer Part Number:

    HMC646LP2E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    HCP-6-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    44 dBm

  • Insertion Loss-Max:

    1.7 dB

  • Isolation-Min:

    12 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • On Time-Nom:

    0.32 µs

  • Operating Frequency-Max:

    2100 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.09
