HMC648ALP6E - Analog Devices

Description: Phase Detectors / Shifters MMIC 6-Bit Digital Phase Shifter 2.9 -

Download HMC648ALP6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

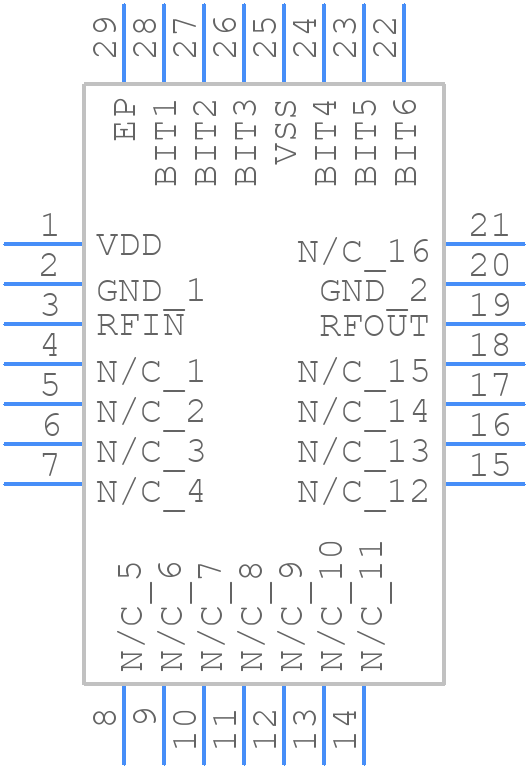

Symbol
HMC648ALP6E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC648ALP6E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC648ALP6E
click to zoom
3D Models
HMC648ALP6E - Analog Devices - 3D model - Quad Flat No-Lead - HMC648ALP6E
click to zoom

HMC648ALP6E Details

  • Manufacturer Part Number:

    HMC648ALP6E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT, 28 PIN

  • Pin Count:

    28

  • Manufacturer Package Code:

    HCP-28-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    8 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    28

  • Operating Frequency-Max:

    3900 MHz

  • Operating Frequency-Min:

    2900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Phase Shift-Max:

    360 deg

  • Phase Shift-Min:

    5.625 deg

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.33

HMC648ALP6E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC648ALP6E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC648ALP6E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, and the output is properly terminated. Use a low-noise power supply, and keep the device away from noise sources. Additionally, use a high-quality PCB material and ensure the PCB is well-shielded.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output are properly matched to the device to minimize reflections and ensure optimal performance.
