HMC695LP4E - Analog Devices

Description: RF Amplifier x4 Active mult, 11.4 - 13.2 GHz Output

Download HMC695LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

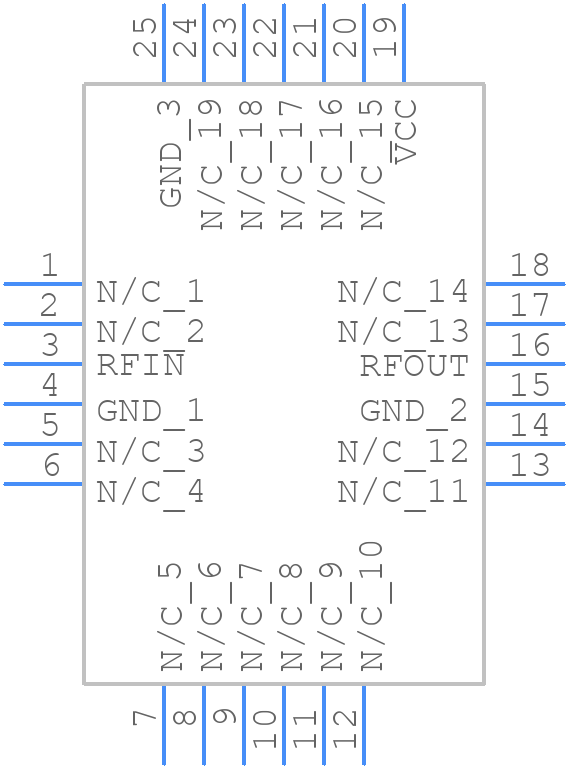

HMC695LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC695LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4
click to zoom
3D Models
HMC695LP4E - Analog Devices - 3D model - Quad Flat No-Lead - QFN 4x4
click to zoom

HMC695LP4E Details

  • Manufacturer Part Number:

    HMC695LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MINIATURE, LEADLESS, PLASTIC PACKAGE-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3300 MHz

  • Operating Frequency-Min:

    2850 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    FREQUENCY QUADRUPLER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC695LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC695LP4E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC695LP4E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, use a low-noise power supply, and keep the device away from noise sources. Additionally, use a high-quality PCB material and ensure good thermal management.
  • The recommended operating temperature range for the HMC695LP4E is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance.
