HMC701LP6CETR - Analog Devices

Description: 8 GHz 16-bit Fractional-N PLL with Sweeper

Download HMC701LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

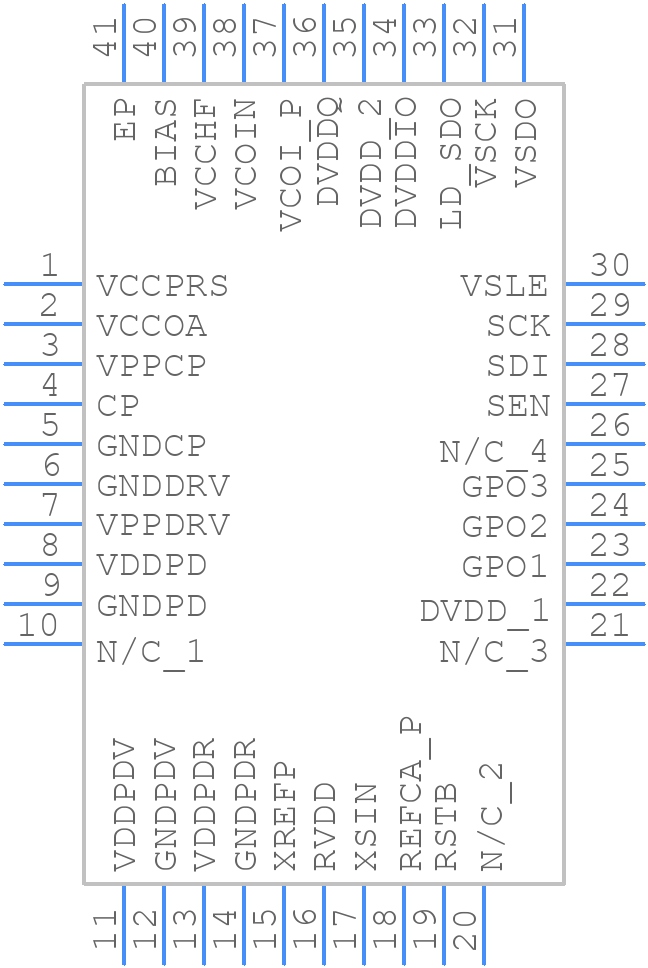

HMC701LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC701LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H839
click to zoom
3D Models
HMC701LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - H839
click to zoom

HMC701LP6CETR Details

  • Manufacturer Part Number:

    HMC701LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC701LP6CETR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the HMC701LP6CETR's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise on the power supply lines.
  • The HMC701LP6CETR requires a bias voltage of 3.3V or 5V, and it's essential to ensure that the bias voltage is clean and stable. A low-dropout regulator (LDO) or a voltage reference can be used to generate the bias voltage. Additionally, it's recommended to decouple the bias voltage with a 10uF capacitor to filter out high-frequency noise.
  • The HMC701LP6CETR is rated for operation from -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Consult the datasheet for more information on temperature derating.
  • To troubleshoot issues with the HMC701LP6CETR, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the input signals are within the recommended frequency range and amplitude. Use an oscilloscope to check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for more troubleshooting tips.
  • The HMC701LP6CETR is not radiation-hardened and is not suitable for use in high-radiation environments. If you need a radiation-hardened device, consult Analog Devices' radiation-hardened product portfolio or contact their sales team for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC701LP6CETR Overview

Use the download button to access the HMC701LP6CETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC70, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
