HMC712ALP3CE - Analog Devices

Description: RF Attenuators 28dB 5 GHz ~ 26.5 GHz 50 Ohms 16-VFQFN Exposed Pad

Download HMC712ALP3CE Model

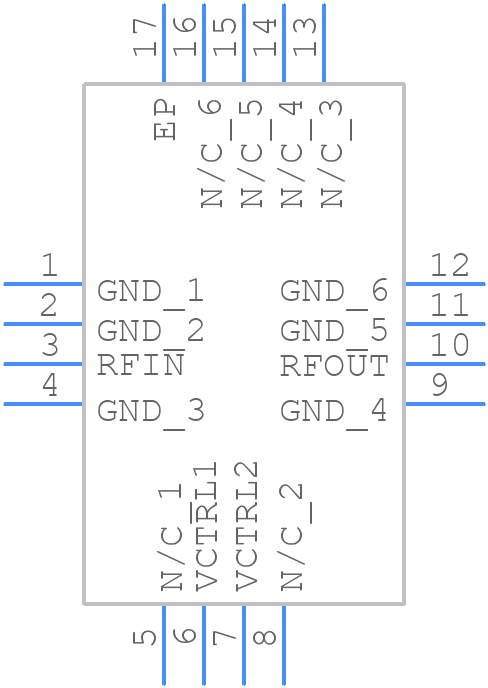

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC712ALP3CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-52)
click to zoom
3D Models
HMC712ALP3CE - Analog Devices  - 3D model - Quad Flat No-Lead - (CP-16-52)
click to zoom

HMC712ALP3CE Details

  • Manufacturer Part Number:

    HMC712ALP3CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VEED-4, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-52

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-06-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    27 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    5.7 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    26500 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.92

HMC712ALP3CE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC712ALP3CE requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC712ALP3CE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC712ALP3CE has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock signal is synchronized with the data signals.
  • The typical current consumption of the HMC712ALP3CE is around 350mA at 3.3V, but this can vary depending on the specific application and operating frequency.
