HMC712LP3CE - Analog Devices

Description: Analog Devices Hittite HMC712LP3CE, Variable Attenuator, 28dB, 26.5GHz, 16-Pin SMT

Download HMC712LP3CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

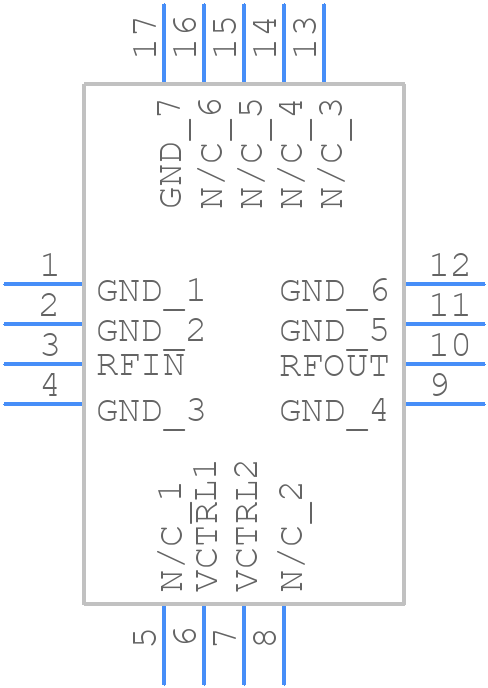

Symbol
HMC712LP3CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC712LP3CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN17-ren1
click to zoom
3D Models
HMC712LP3CE - Analog Devices - 3D model - Quad Flat No-Lead - QFN17-ren1
click to zoom

HMC712LP3CE Details

  • Manufacturer Part Number:

    HMC712LP3CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Attenuation-Nom:

    28 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28 dBm

  • Insertion Loss-Max:

    5.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    26500 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.92

HMC712LP3CE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC712LP3CE requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC712LP3CE can handle input powers up to +10 dBm. Exceeding this limit may cause compression or damage to the device.
  • Optimize the device by selecting the optimal bias current and voltage, and by using a low-noise power supply. Additionally, ensure the input and output are properly matched to minimize reflections and noise.
  • The typical current consumption of the HMC712LP3CE is 120mA at 3.3V. However, this can vary depending on the operating conditions and bias settings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC712LP3CE Overview

Use the download button to access the HMC712LP3CE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC71, or try a keyword search, such as RF/Microwave Attenuators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
