A good PCB layout for the HMC723LP3E involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of bypass capacitors for the HMC723LP3E depends on the specific application and the frequency range of operation. In general, a combination of low-ESR ceramic capacitors (e.g. 100nF and 1uF) and a larger electrolytic capacitor (e.g. 10uF) is recommended. The capacitors should be placed as close as possible to the device pins.
The maximum power dissipation of the HMC723LP3E is dependent on the operating temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.45W at 25°C. However, this value can be derated at higher temperatures.
The HMC723LP3E is a programmable device that can be controlled using a serial interface (SPI). The device can be programmed using a microcontroller or a dedicated programming tool. The specific programming sequence and commands can be found in the datasheet and the programming guide.
The typical settling time of the HMC723LP3E is dependent on the specific application and the frequency range of operation. According to the datasheet, the typical settling time is around 100ns to 200ns. However, this value can vary depending on the specific use case.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HMC723LP3E Overview

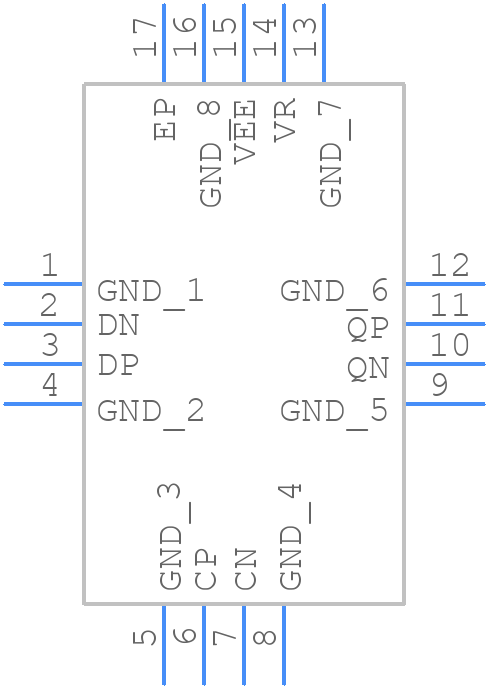

Use the download button to access the HMC723LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC72,
or try a keyword search, such as FF/Latches
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
