HMC736LP4E footprint, schematic symbol and 3D model by Analog Devices

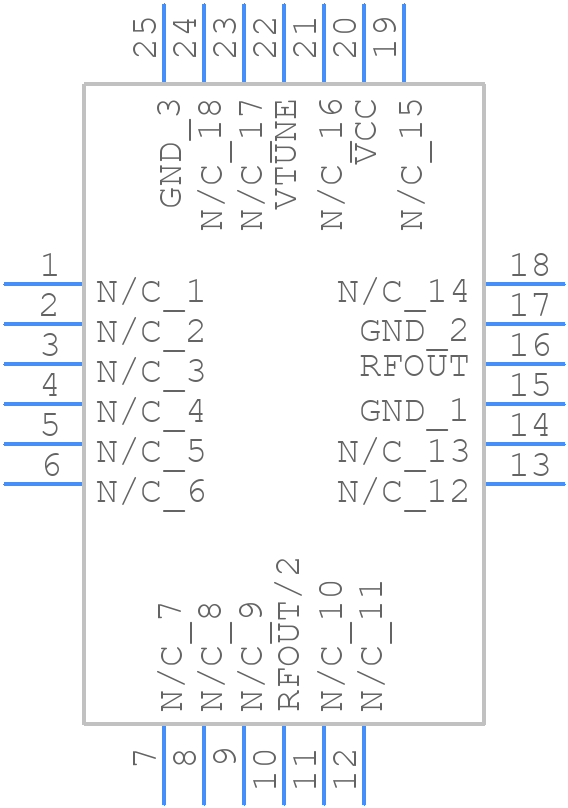

Symbol

click to zoom

PCB Footprints

HMC736LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-2_2026-1.14

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC736LP4E
Part Number HMC736LP4E
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HCP-24-2_2026-1.14
Released Date Sep 3, 2026
Last Modified Date Sep 3, 2026 4:04 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC736LP4E Details

Manufacturer Part Number:
HMC736LP4E
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LEADLESS, QFN-24
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Control Voltage-Max:
13 V
Control Voltage-Min:
1 V
JESD-609 Code:
e3
Modulation Sensitivity:
24 MHz/V
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Offset Frequency:
100 kHz
Operating Frequency-Max:
15000 MHz
Operating Frequency-Min:
14500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
VOLTAGE CONTROLLED OSCILLATOR
Output Power:
9 dBm
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Phase Noise:
-105 dBc/Hz
Physical Dimension:
4.1mm x 4.1mm x 1.0mm
Supply Current-Max:
180 mA
Supply Voltage-Nom:
4.2 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)

HMC736LP4E Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the Vcc and Vee pins are connected to a stable power supply, and the Vtune pin is connected to a voltage source that is 1.5V to 3.5V above Vee. Also, ensure the bias current is set correctly using the Iset pin.
The HMC736LP4E can handle up to 30 dBm of input power, but it's recommended to operate at 20 dBm or less to ensure optimal performance and prevent damage to the device.
Use the Vtune pin to adjust the frequency response of the device. A higher voltage on Vtune will shift the frequency response higher, while a lower voltage will shift it lower. Consult the datasheet for specific tuning guidelines.
The recommended operating temperature range for the HMC736LP4E is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.
