HMC736LP4ETR - Analog Devices

Description: RF IC VCO General Purpose 14.5GHz ~ 15GHz Dual Outputs (Divide by 2, Standard) 24-QFN (4x4)

Download HMC736LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

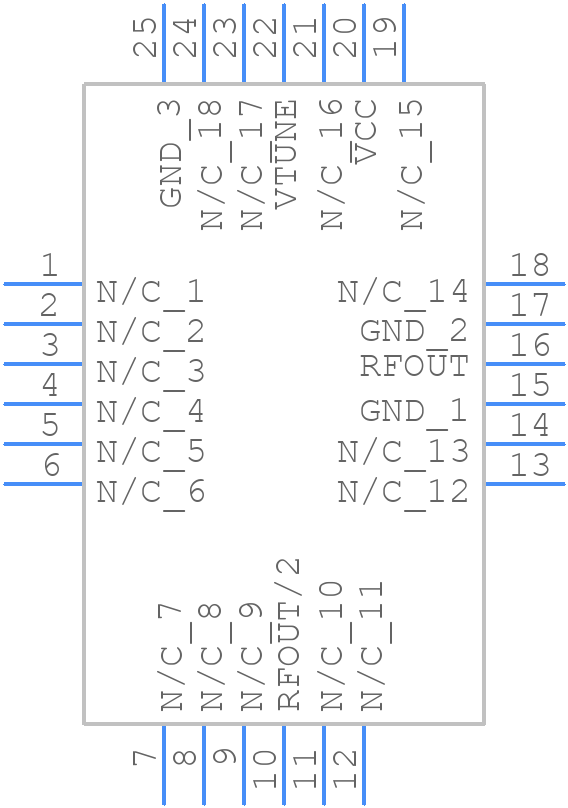

HMC736LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC736LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-2_2026-1.14
click to zoom

HMC736LP4ETR Details

  • Manufacturer Part Number:

    HMC736LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    4.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

HMC736LP4ETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC736LP4ETR can be found in the 'PCB Layout and Thermal Management' section of the device's evaluation board documentation. It is essential to follow these guidelines to ensure optimal performance, low noise, and thermal stability.
  • To optimize the power supply decoupling, use a combination of high-frequency and low-frequency capacitors (e.g., 100 nF and 10 μF) placed close to the device's power pins. Additionally, use a low-ESR capacitor (e.g., 10 μF) on the Vcc pin to reduce noise and improve stability.
  • The HMC736LP4ETR is rated for operation from -40°C to +85°C. However, it is essential to ensure that the device is properly cooled and thermal management is implemented to prevent overheating, especially in high-power applications.
  • To troubleshoot common issues, start by verifying the PCB layout and thermal management. Check for proper power supply decoupling, and ensure that the device is operated within its recommended operating conditions. Use oscilloscopes and spectrum analyzers to identify and isolate the source of the issue. Consult the device's datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • The recommended test and measurement equipment for characterizing the HMC736LP4ETR include a high-frequency signal generator, a spectrum analyzer, an oscilloscope, and a vector network analyzer. These tools will help you measure the device's frequency response, noise figure, and other key performance parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC736LP4ETR Overview

Use the download button to access the HMC736LP4ETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC73, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
