HMC753LP4E - Analog Devices

Description: Analog Devices Hittite HMC753LP4E, RF Amplifier Low Noise, Wideband, 16.5 dB 11 GHz, 24-Pin SMT

Download HMC753LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

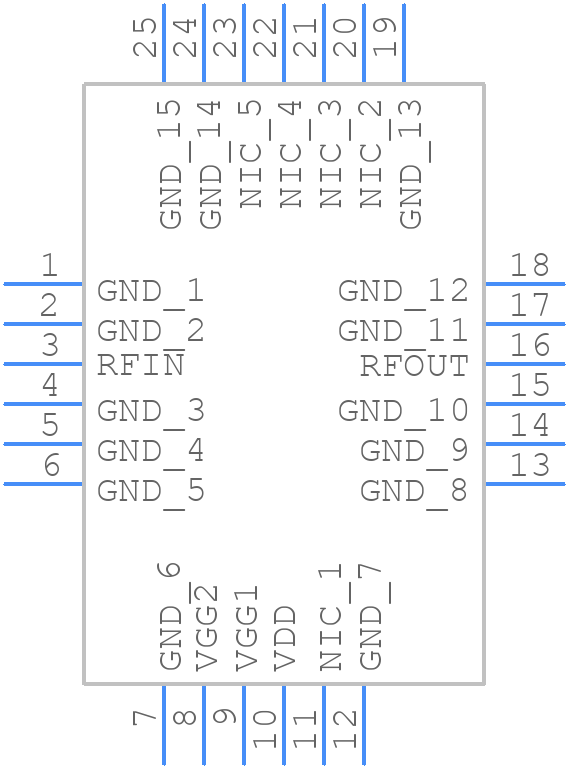

HMC753LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC753LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP]_21
click to zoom
3D Models
HMC753LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP]_21
click to zoom

HMC753LP4E Details

  • Manufacturer Part Number:

    HMC753LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    12 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    11000 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    55 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn)

HMC753LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC753LP4E requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC753LP4E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC753LP4E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock and data signals are synchronized.
  • The typical power consumption of the HMC753LP4E is around 1.5W, but this can vary depending on the operating frequency and the specific application.
