HMC767LP6CETR - Analog Devices

Description: FRACTIONAL-N PLL WITH INTEGRATED VCO, 8.45 - 9.55 GHz IC PLL W/VCO FRACT-N 40-QFN

Download HMC767LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

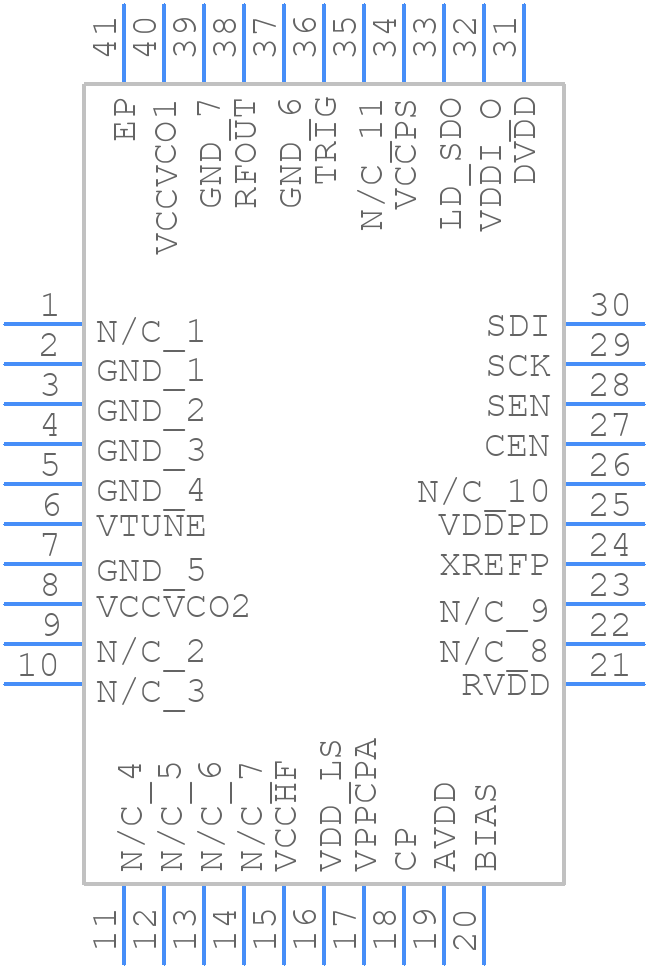

HMC767LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC767LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-VFQFN Exposed Pad
click to zoom
3D Models
HMC767LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - 40-VFQFN Exposed Pad
click to zoom

HMC767LP6CETR Details

  • Manufacturer Part Number:

    HMC767LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

HMC767LP6CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC767LP6CETR requires a single 5V supply. Ensure the voltage supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC767LP6CETR can support data rates up to 10.3125 Gbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal integrity.
  • Use a high-speed oscilloscope to analyze the signal quality and integrity. Check for signal reflections, ringing, and jitter. Verify the PCB layout and signal routing to ensure minimal signal degradation.
  • The HMC767LP6CETR is not specifically designed for radiation-hardened or high-reliability applications. However, Analog Devices Inc. offers other products that are designed for such applications. Consult with Analog Devices Inc. for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC767LP6CETR Overview

Use the download button to access the HMC767LP6CETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC76, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
