HMC784MS8GE - Analog Devices

Description: Analog Devices Hittite HMC784MS8GE, RF Switch Circuit 4GHz Single SPDT 26dB Isolation CMOS/TTL 3 → 8 V dc 8-Pin

Download HMC784MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

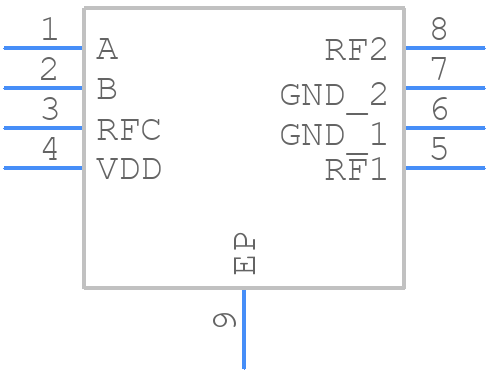

HMC784MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC784MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC784AMS8GETR
click to zoom
3D Models
HMC784MS8GE - Analog Devices - 3D model - Small Outline Packages - HMC784AMS8GETR
click to zoom

HMC784MS8GE Details

  • Manufacturer Part Number:

    HMC784MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    35 dBm

  • Additional Feature:

    CMOS/TTL COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    39 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    26 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.04 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.04
