Please enter a minimum 3 letters or numbers
Technical Content
Part Image

HMC784MS8GETR - Analog Devices

Description: RF Switch ICs SPDT 10W T/R Switch

Download HMC784MS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

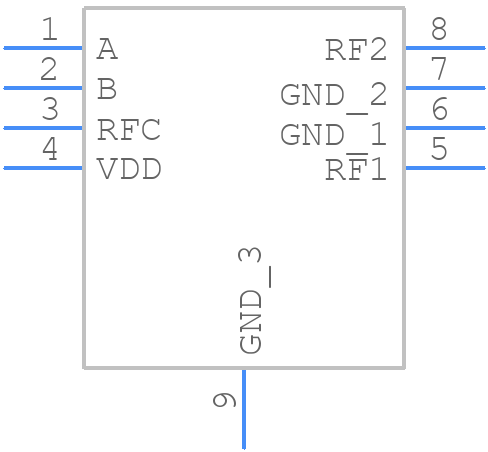

Symbol
HMC784MS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC784MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H784
click to zoom
3D Models
HMC784MS8GETR - Analog Devices - 3D model - Small Outline Packages - H784
click to zoom

HMC784MS8GETR Details

  • Manufacturer Part Number:

    HMC784MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    35 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    39 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    26 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.04 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.04

HMC784MS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use the device's power-down mode, reduce the operating frequency, and optimize the voltage regulator module (VRM) design to minimize power consumption.
  • Use controlled impedance traces, minimize signal routing distance, and add signal termination resistors to ensure signal integrity. Also, consider using differential signaling and adding shielding to reduce electromagnetic interference (EMI).
  • Use a metal shield or a Faraday cage to enclose the device, add EMI filters, and ensure good grounding and shielding of cables and connectors. Also, follow the recommended PCB layout and component placement guidelines.
  • Use a vector signal analyzer or a spectrum analyzer to measure the device's frequency response, noise figure, and gain. Also, use a signal generator to test the device's input and output impedance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC784MS8GETR Overview

Use the download button to access the HMC784MS8GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC78, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to HMC784MS8GETR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
