HMC820LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 1095 - 1275, 2190 - 2550, 4380 - 5100 MHz

Download HMC820LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

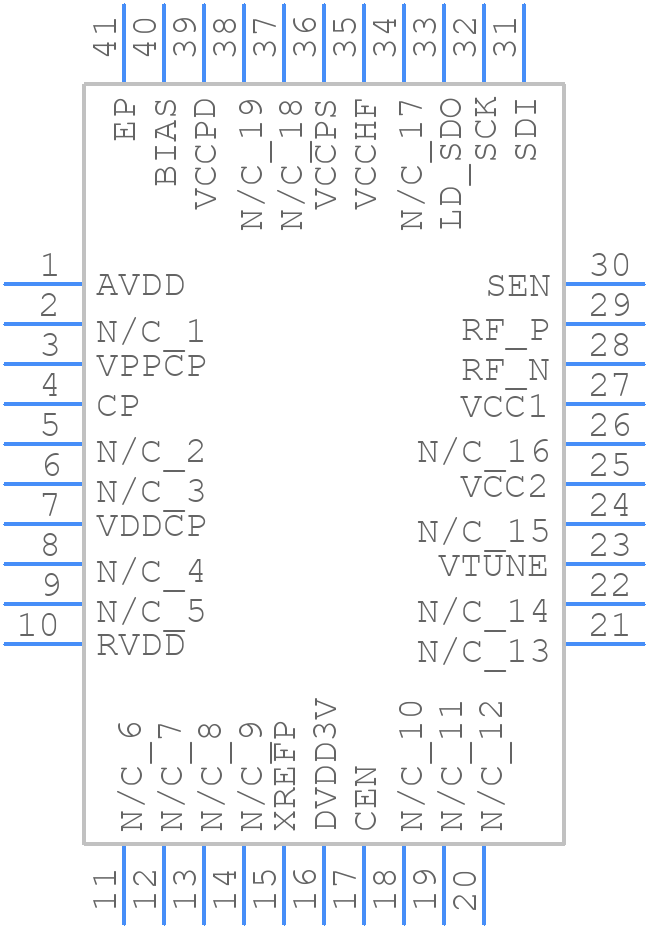

HMC820LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC820LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H839
click to zoom
3D Models
HMC820LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - H839
click to zoom

HMC820LP6CETR Details

  • Manufacturer Part Number:

    HMC820LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HMC820LP6CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce noise and EMI.
  • The HMC820LP6CETR requires a single 3.3V power supply. Ensure the power supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors. The recommended bias current is 10mA.
  • The HMC820LP6CETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To reduce the noise figure, ensure the device is properly biased, use a high-quality power supply, and minimize the length of the signal traces. Additionally, use a noise-reducing component such as a ferrite bead or a common mode filter to reduce EMI.
  • The recommended operating temperature range for the HMC820LP6CETR is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.
