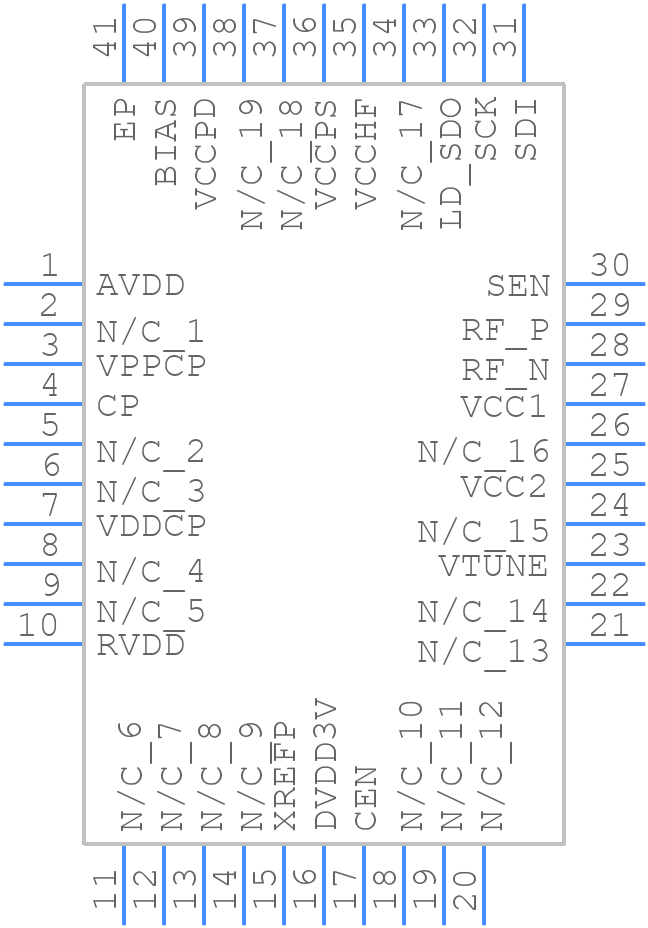

HMC822LP6CETR - Analog Devices

HMC822LP6CETR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the HMC822LP6CETR?
  Analog Devices provides a recommended PCB layout in the evaluation board documentation (e.g., UG-1289) and in the application notes (e.g., AN-1369). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
• How do I properly terminate the output of the HMC822LP6CETR to avoid signal reflections?
  The output of the HMC822LP6CETR should be terminated with a 50-ohm load to match the output impedance of the device. Additionally, it's recommended to use a series resistor (e.g., 10-20 ohms) and a shunt capacitor (e.g., 10-20 pF) to form a resistive-capacitive (RC) termination network to minimize signal reflections.
• What is the maximum power consumption of the HMC822LP6CETR, and how can I reduce it?
  The maximum power consumption of the HMC822LP6CETR is approximately 1.2 W. To reduce power consumption, consider using a lower supply voltage (e.g., 3.3 V instead of 5 V), reducing the output power, or using a power-down mode when the device is not in use.
• How do I ensure the HMC822LP6CETR is properly biased for optimal performance?
  The HMC822LP6CETR requires a bias voltage (Vcc) of 3.3 V to 5 V and a bias current (Icc) of approximately 200 mA. Ensure that the power supply is stable and well-regulated, and that the bias voltage is applied correctly to the device. Refer to the datasheet and application notes for more information on biasing and power supply requirements.
• What are the thermal management considerations for the HMC822LP6CETR?
  The HMC822LP6CETR has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal vias, or a thermally conductive PCB material. Ensure that the device is not exposed to excessive temperatures during operation or storage.
