HMC824LP6CE - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 780 - 870 MHz

Download HMC824LP6CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

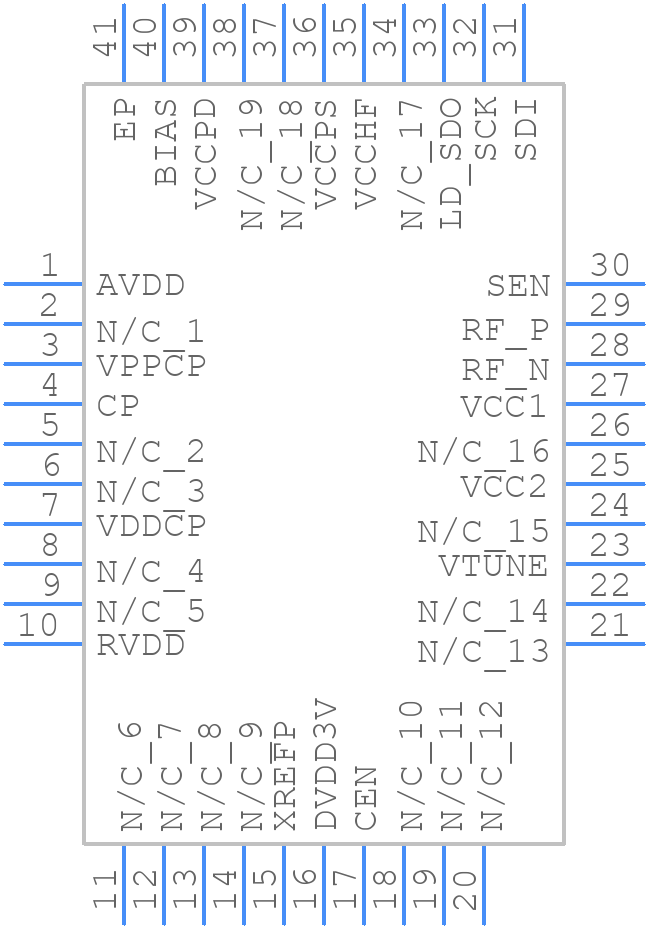

HMC824LP6CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC824LP6CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H839
click to zoom
3D Models
HMC824LP6CE - Analog Devices - 3D model - Quad Flat No-Lead - H839
click to zoom

HMC824LP6CE Details

  • Manufacturer Part Number:

    HMC824LP6CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES WITH 4.8V-5.2V SUPPLY

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC824LP6CE Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC824LP6CE involves keeping the signal paths short, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a 4-layer PCB with a dedicated layer for the power supply and another for the ground plane. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To optimize the power supply design for the HMC824LP6CE, it's recommended to use a low-noise, low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR). The power supply should be decoupled with a 10uF capacitor in parallel with a 100nF capacitor, and the voltage regulator should be placed close to the device. Additionally, the power supply lines should be routed away from the sensitive analog signals.
  • The HMC824LP6CE has a high power density, so thermal management is critical. A good thermal management strategy involves using a heat sink with a thermal interface material (TIM) to improve heat transfer. The device's exposed pad should be connected to a solid ground plane, which acts as a heat sink. Additionally, the PCB should be designed to allow for good airflow around the device.
  • To troubleshoot common issues with the HMC824LP6CE, it's recommended to first check the power supply design and ensure that it's clean and stable. Next, check the PCB layout and ensure that the signal paths are short and well-shielded. If the issue persists, check the device's input and output signals using an oscilloscope to identify any signs of oscillation or instability. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • To characterize the HMC824LP6CE, it's recommended to use a high-frequency signal generator, a spectrum analyzer, and an oscilloscope with a high-bandwidth probe. Additionally, a vector network analyzer (VNA) can be used to measure the device's S-parameters. It's also recommended to use a temperature chamber to characterize the device's performance over temperature.
