HMC826LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 990 - 1105 MHz

Download HMC826LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

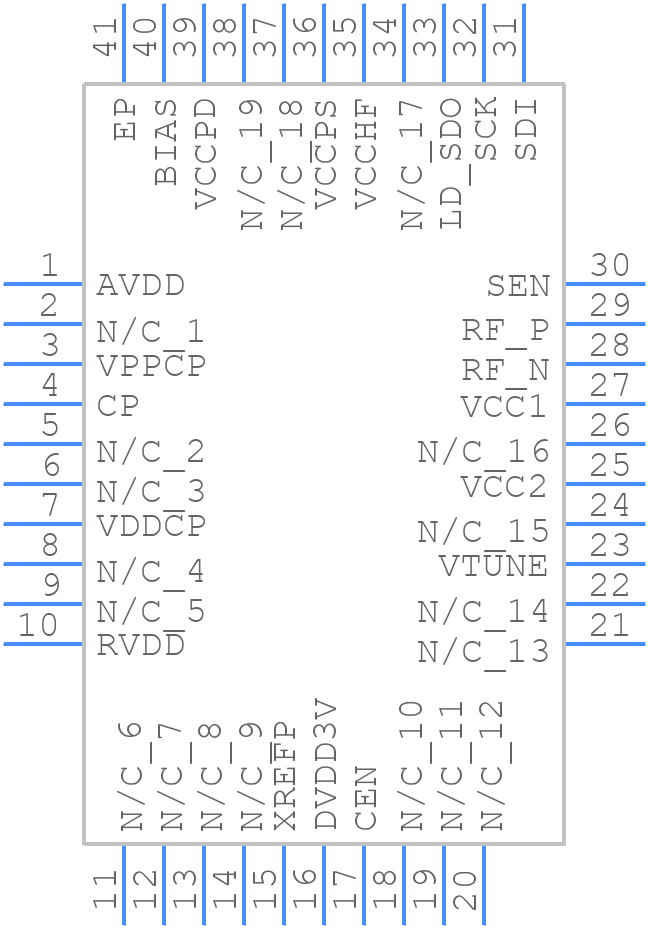

HMC826LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC826LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC838LP6CETR-
click to zoom
3D Models
HMC826LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC838LP6CETR-
click to zoom

HMC826LP6CETR Details

  • Manufacturer Part Number:

    HMC826LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HMC826LP6CETR Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the evaluation board documentation and layout files, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
  • Analog Devices provides a troubleshooting guide in the datasheet and application notes. Additionally, engineers can use tools like oscilloscopes and spectrum analyzers to debug the issue. It's also recommended to consult with Analog Devices' support team or online forums for further assistance.
  • The HMC826LP6CETR has a maximum junction temperature of 150°C. Engineers should ensure proper heat sinking and thermal management to prevent overheating. This can be achieved by using thermal pads, heat sinks, or fans, and by following Analog Devices' thermal management guidelines.
  • While the HMC826LP6CETR is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. Engineers should consult with Analog Devices' application notes and perform simulations to ensure optimal performance in their specific system.
  • Analog Devices provides a recommended calibration procedure in the datasheet and application notes. Engineers should follow this procedure to ensure accurate and reliable performance. Additionally, they may need to perform periodic recalibration depending on their specific application and environment.
