HMC835LP6GE - Analog Devices

Description: IC PLL VCO WIDEBAND 40SMD

Download HMC835LP6GE Model

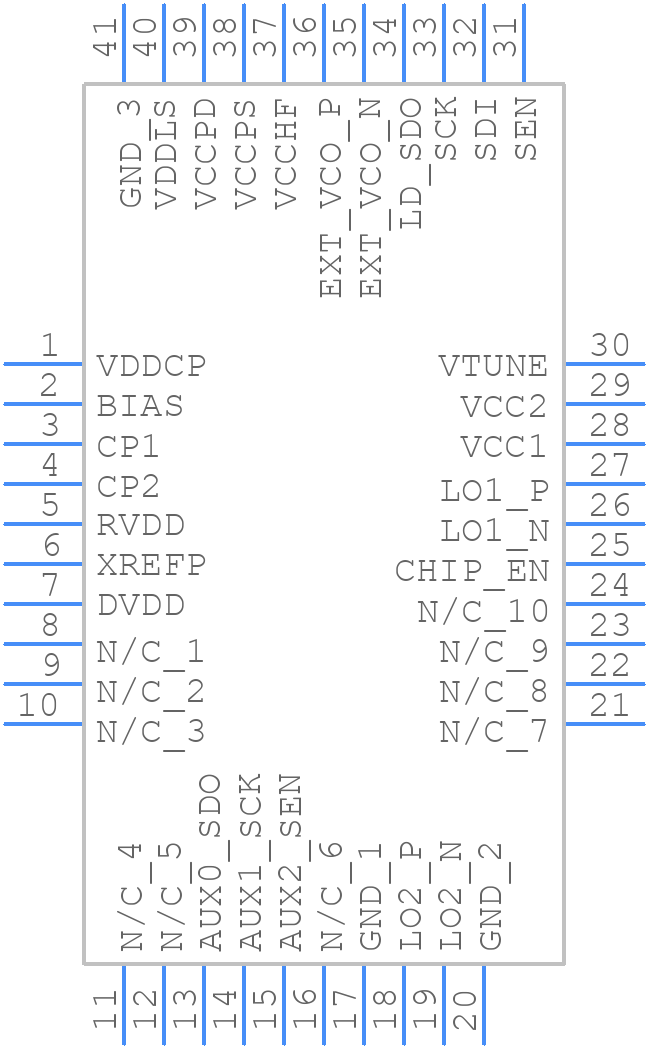

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC835LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H830 (40-pin QFN)
click to zoom
3D Models
HMC835LP6GE - Analog Devices  - 3D model - Quad Flat No-Lead - H830 (40-pin QFN)
click to zoom

HMC835LP6GE Details

  • Manufacturer Part Number:

    HMC835LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

HMC835LP6GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a Smith chart to design the matching networks for optimal gain and efficiency.
  • Follow the recommended biasing and tuning procedures outlined in the datasheet and application notes. Use a variable voltage source and a spectrum analyzer to optimize the bias and tuning for optimal performance.
  • Monitor the device's voltage, current, and temperature to ensure they are within the recommended operating ranges. Use a thermal monitor and a voltage regulator to prevent overheating and overvoltage.
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap and a conductive mat to prevent static damage.
