HMC8362LP6GE - Analog Devices

Description: VCO Oscillators DRT Dual Band VCO 13 - 18.6 GHz

Download HMC8362LP6GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

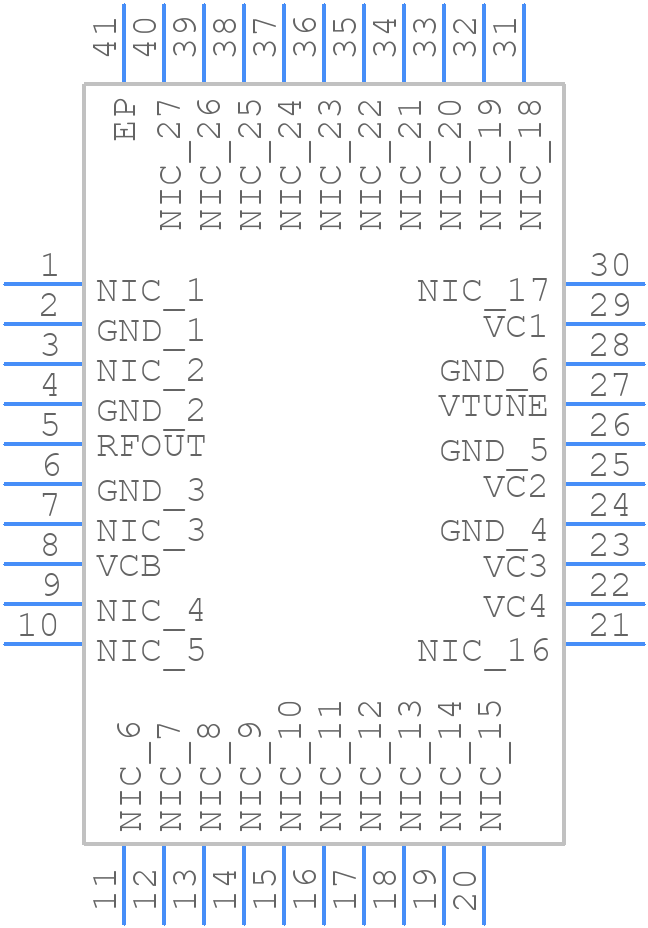

HMC8362LP6GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8362LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-40-1
click to zoom
3D Models
HMC8362LP6GE - Analog Devices - 3D model - Quad Flat No-Lead - HCP-40-1
click to zoom

HMC8362LP6GE Details

  • Manufacturer Part Number:

    HMC8362LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

HMC8362LP6GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure good thermal conductivity and minimal thermal resistance to maintain junction temperature below 125°C.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance matching for maximum power transfer.
  • The recommended bias voltage is 5V, and the recommended bias current is 100mA. However, the optimal bias settings may vary depending on the specific application and operating conditions.
  • Monitor the amplifier's output power, gain, and phase to ensure it is operating within the stable and linear region. Use a load-line analysis to determine the optimal operating point.
  • The device has a maximum junction temperature of 125°C and a maximum power dissipation of 2W. Ensure the device is operated within these limits to prevent thermal runaway and damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8362LP6GE Overview

Use the download button to access the HMC8362LP6GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC83, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
