HMC862LP3E - Analog Devices

Description: Analog Devices Hittite HMC862LP3E, Frequency Divider, Low Noise Divider, 3 → 5 V, 16-Pin QFN

Download HMC862LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

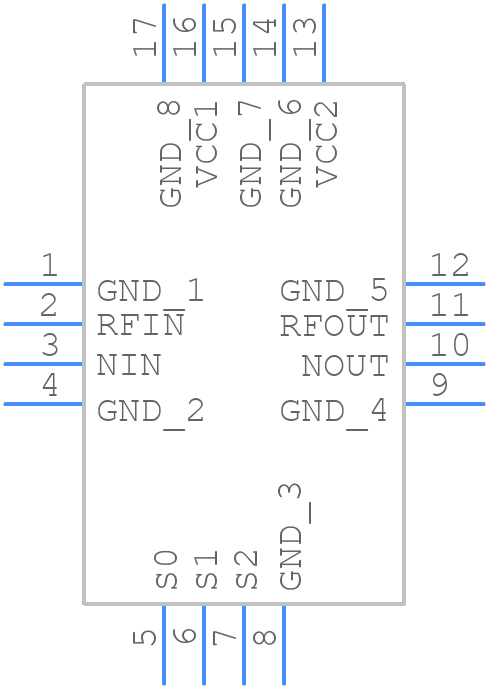

HMC862LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC862LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3X3 mm SMT Package
click to zoom
3D Models
HMC862LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3X3 mm SMT Package
click to zoom

HMC862LP3E Details

  • Manufacturer Part Number:

    HMC862LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

HMC862LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC862LP3E requires a single 5V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10nF and 100nF capacitors.
  • The maximum input power that the HMC862LP3E can handle is +20 dBm. Exceeding this may cause damage to the device.
  • Use the internal bias circuitry to optimize the device for a specific frequency band. Consult the datasheet for recommended bias settings for different frequency bands.
  • The typical current consumption of the HMC862LP3E is 120mA at 5V. However, this may vary depending on the operating frequency and input power level.
