- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC863LP4E
- Part Number HMC863LP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - H863
- Released Date Feb 8, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC863LP4E Details
-
Manufacturer Part Number:
HMC863LP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
4 X 4 MM, ROHS COMPLIANT, PLASTIC, SMT, 24 PIN
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC863LP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
Ensure the Vcc and Vee pins are decoupled with 100nF capacitors and the bias voltage is set to the recommended 5V. Also, ensure the input and output impedances are matched to minimize reflections.
-
The HMC863LP4E can handle up to 1W of power. However, it's recommended to derate the power handling to 0.5W to ensure reliable operation and minimize thermal issues.
-
Check the PCB layout for any signs of resonance or oscillation. Ensure the input and output impedances are matched, and the bias voltage is set correctly. Also, check for any signs of overheating or thermal issues.
-
Yes, the HMC863LP4E can be used in a push-pull configuration. However, ensure the input and output impedances are matched, and the bias voltage is set correctly to minimize distortion and ensure stable operation.
Trust Checks
Community Provided
System Verified
Community Approved
HMC863LP4E Overview

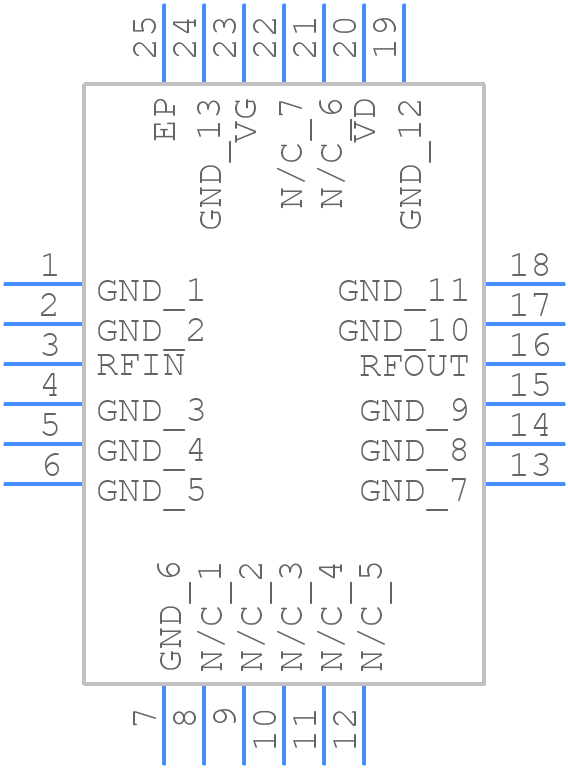

Use the download button to access the HMC863LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC86,
or try a keyword search, such as RF/Microwave Amplifiers
