HMC936ALP6E - Analog Devices

Description: ANALOG DEVICES - HMC936ALP6E - Phase Shifter, GaAs MMIC 6 Bit Digital, 1.2 GHz to 1.4 GHz, 0 V to 5 V, SMD-28

Download HMC936ALP6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

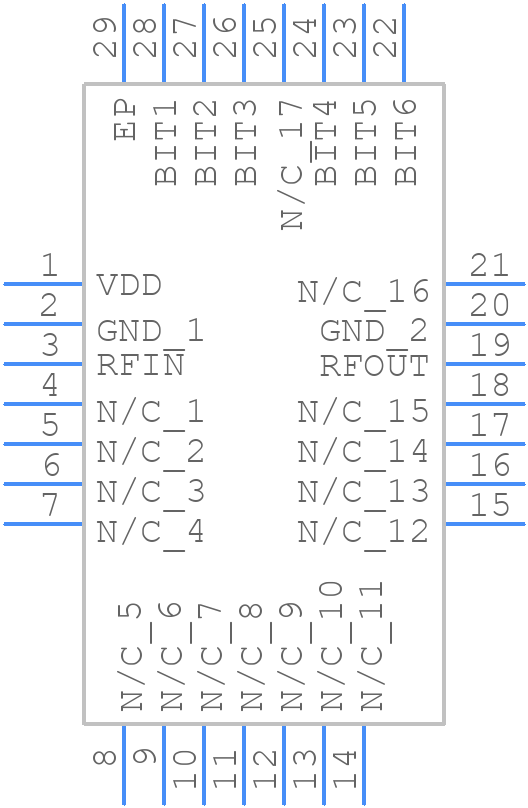

HMC936ALP6E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC936ALP6E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-QFN (6x6)
click to zoom
3D Models
HMC936ALP6E - Analog Devices - 3D model - Quad Flat No-Lead - 28-QFN (6x6)
click to zoom

HMC936ALP6E Details

  • Manufacturer Part Number:

    HMC936ALP6E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT, 28 PIN

  • Pin Count:

    28

  • Manufacturer Package Code:

    HCP-28-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-04-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    7 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    28

  • Operating Frequency-Max:

    1400 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Phase Shift-Max:

    360 deg

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.33

HMC936ALP6E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a network analyzer to measure the input and output impedance of the device, and then design a matching network using a Smith chart or a circuit simulator like ADS or AWR.
  • Follow the recommended biasing and tuning procedure outlined in the datasheet, and use a variable voltage source to adjust the bias voltage. Monitor the output power and adjust the bias voltage for optimal performance.
  • Monitor the device's junction temperature, output power, and input power to ensure they are within the recommended limits. Use a thermal sensor and a power detector to monitor the device's temperature and output power.
  • Handle the device in an ESD-controlled environment, and use ESD-protective packaging and handling materials. Ground yourself before handling the device, and use an anti-static wrist strap or mat.
