HMC939ATCPZ-EP-R7 - Analog Devices

Description: 0.1 GHz to 33 GHz,1 dB LSB, 5-Bit, GaAs Digital Attenuator

Download HMC939ATCPZ-EP-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

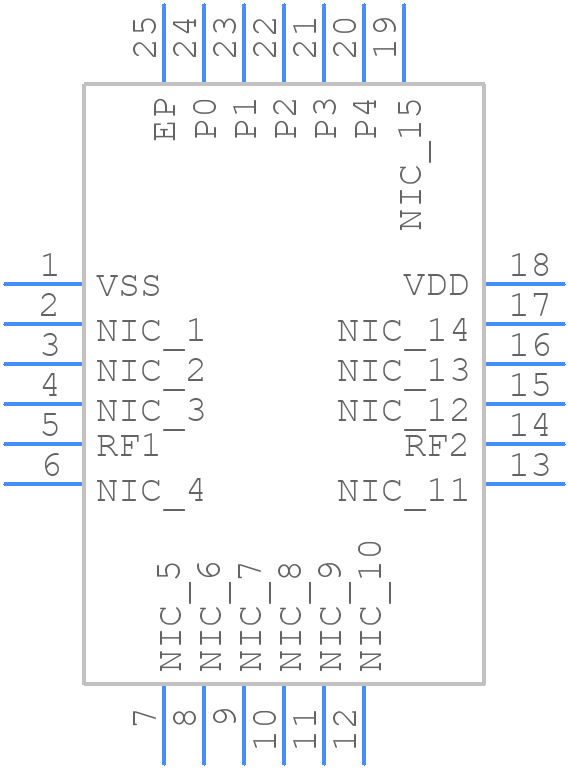

HMC939ATCPZ-EP-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC939ATCPZ-EP-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.85 mm Package Height (CP-24-16)
click to zoom
3D Models
HMC939ATCPZ-EP-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.85 mm Package Height (CP-24-16)
click to zoom

HMC939ATCPZ-EP-R7 Details

  • Manufacturer Part Number:

    HMC939ATCPZ-EP-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220-VGGD-8, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    8 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    33000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    +-5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    6.5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.92

HMC939ATCPZ-EP-R7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-1369, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise.
  • The HMC939ATCPZ-EP-R7 is a wideband amplifier, but it can be configured for different frequency bands using external matching networks. Analog Devices provides a frequency planning guide in their application note AN-1369, which includes examples of matching networks for different frequency bands.
  • The maximum power handling capability of the HMC939ATCPZ-EP-R7 is dependent on the operating frequency and temperature. According to the datasheet, the device can handle up to 30 dBm of input power at 2 GHz, but this may vary depending on the specific application. It's recommended to consult with Analog Devices' application engineers for specific guidance on power handling.
  • The HMC939ATCPZ-EP-R7 requires a specific bias voltage and current to operate optimally. Analog Devices provides a recommended biasing scheme in their application note AN-1369, which includes guidelines for setting the bias voltage and current using external resistors and voltage sources.
  • The typical noise figure of the HMC939ATCPZ-EP-R7 is around 2.5 dB, but this can vary depending on the operating frequency and temperature. The noise figure is specified in the datasheet, but it's recommended to consult with Analog Devices' application engineers for specific guidance on noise figure performance in your application.
