HMC966LP4ETR footprint, schematic symbol and 3D model by Analog Devices

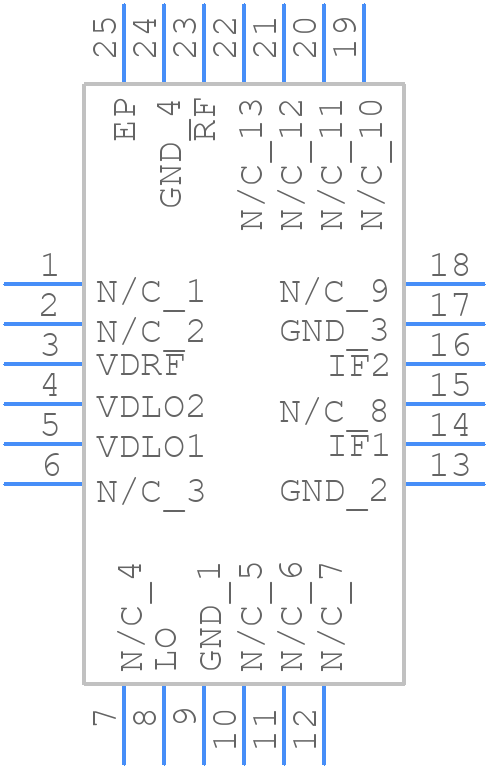

Symbol

click to zoom

PCB Footprints

HMC966LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-2_2026-1.21

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC966LP4ETR
Part Number HMC966LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HCP-24-2_2026-1.21
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 3:17 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC966LP4ETR Details

Manufacturer Part Number:
HMC966LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Down Conversion Gain-Min:
10 dB
IF Frequency-Max:
3500 MHz
JESD-609 Code:
e3
LO Tunable:
YES
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Power Supplies:
4.5 V
RF Input Frequency-Max:
20000 MHz
RF Input Frequency-Min:
17000 MHz
RF/Microwave Device Type:
DOWN CONVERTER
Supply Current-Max:
200 mA
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)

HMC966LP4ETR Frequently Asked Questions (FAQs)

The recommended PCB layout and thermal management for the HMC966LP4ETR can be found in the application note AN-1369 from Analog Devices Inc. It provides guidelines for PCB design, thermal management, and component placement to ensure optimal performance and reliability.
Analog Devices Inc provides a troubleshooting guide in the application note AN-1067, which covers common issues and their solutions for the HMC966LP4ETR. Additionally, the device's evaluation board and software tools can be used to debug and optimize the amplifier circuit.
The recommended values for the input and output termination resistors can be found in the device's datasheet and application notes. Typically, a 50-ohm termination is recommended for the input and output, but the optimal value may vary depending on the specific application and frequency range.
To ensure EMI compliance, it is recommended to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. Additionally, the device's evaluation board and application notes provide guidance on EMI mitigation techniques.
The recommended power supply decoupling and filtering for the HMC966LP4ETR involves using a combination of capacitors and resistors to filter out noise and ripple on the power supply lines. The application note AN-1369 provides guidelines for power supply decoupling and filtering.
