HMC967LP4E - Analog Devices

Description: I/Q Downconverter SMT, 21 - 24 GHz

Download HMC967LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

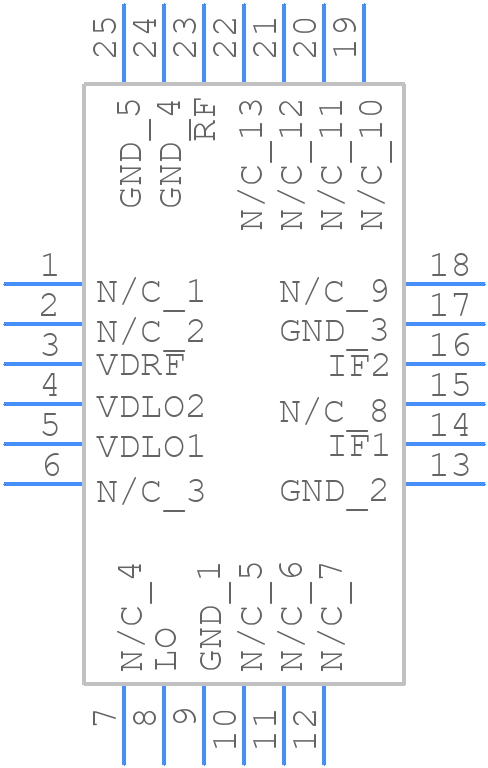

HMC967LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC967LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1
click to zoom
3D Models
HMC967LP4E - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP_2026-1
click to zoom

HMC967LP4E Details

  • Manufacturer Part Number:

    HMC967LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    11 dB

  • IF Frequency-Max:

    3500 MHz

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    3.5 dB

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3.5 V

  • RF Input Frequency-Max:

    24000 MHz

  • RF Input Frequency-Min:

    21000 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Supply Current-Max:

    210 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC967LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC967LP4E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean 5V power supply, and the Vee pin should be connected to a quiet ground.
  • The maximum input power that the HMC967LP4E can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • The HMC967LP4E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input impedance. Use a level translator if necessary to match the voltage levels.
  • The typical current consumption of the HMC967LP4E is 350mA. However, this can vary depending on the operating frequency, input power, and temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC967LP4E Overview

Use the download button to access the HMC967LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC96, or try a keyword search, such as RF/Microwave Up/Down Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
