The recommended operating temperature range for the HN2S02FU is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering and mounting, follow the recommended soldering conditions and guidelines provided in the datasheet. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and apply a moderate amount of soldering flux. For mounting, use a suitable PCB material and follow the recommended land pattern and pad layout.
To prevent damage and ensure the device's reliability, handle the HN2S02FU with care. Avoid touching the pins or exposing the device to moisture, dust, or extreme temperatures. Store the device in its original packaging or a suitable anti-static bag, and keep it away from direct sunlight and heat sources.
The HN2S02FU is designed for low-frequency applications, and its performance may degrade at high frequencies. If you need to use it in a high-frequency application, consult with Toshiba's technical support or a qualified engineer to determine the device's suitability and potential modifications required.
To troubleshoot issues with the HN2S02FU, start by reviewing the datasheet and application notes. Check the device's pinout, voltage ratings, and operating conditions. Use a multimeter or oscilloscope to measure voltage, current, and signal waveforms. If the issue persists, consult with Toshiba's technical support or a qualified engineer for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HN2S02FU(TE85L,F) Overview

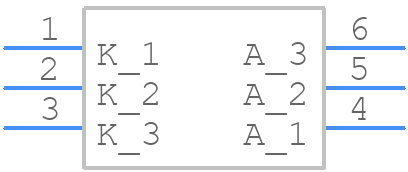

Use the download button to access the HN2S02FU(TE85L,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HN2S0,
or try a keyword search, such as Rectifier Diodes
