The recommended operating temperature range for the HN2S02JE is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To handle the HN2S02JE's ESD sensitivity, it's crucial to follow proper electrostatic discharge (ESD) precautions during handling, storage, and assembly. This includes using ESD-safe materials, grounding personnel, and avoiding direct contact with the device's pins.
The maximum allowable power dissipation for the HN2S02JE is 1.5 W, as specified in the datasheet. Exceeding this limit can lead to device failure or reduced lifespan. Ensure that your design takes into account the device's power dissipation and provides adequate heat sinking or thermal management.
While the HN2S02JE is a high-quality device, it's essential to consult with Toshiba America Electronic Components or a qualified representative to determine its suitability for high-reliability or automotive applications. Additional testing, validation, or certification may be required to ensure the device meets the specific requirements of these industries.
The HN2S02JE's pinout and package dimensions are detailed in the datasheet. Ensure that you carefully review the pin assignments, package outline, and recommended land patterns to avoid errors during PCB design and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HN2S02JE(TE85L,F) Overview

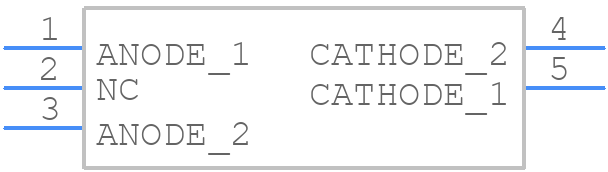

Use the download button to access the HN2S02JE(TE85L,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HN2S0,
or try a keyword search, such as Rectifier Diodes
