HP8MA2TB1 - ROHM Semiconductor

Description: 30V Nch+Pch Middle Power MOSFET

Download HP8MA2TB1 Model

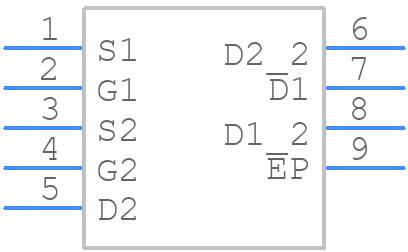

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HP8MA2TB1 - ROHM Semiconductor PCB footprint - Other - Other - HP8MA2TB1-5
click to zoom
3D Models
HP8MA2TB1 - ROHM Semiconductor  - 3D model - Other - HP8MA2TB1-5
click to zoom

HP8MA2TB1 Details

  • Manufacturer Part Number:

    HP8MA2TB1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HSOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Date Of Intro:

    2016-07-13

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    11 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain-source On Resistance-Max:

    0.0165 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    48 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
