Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance.
To ensure stability, it's crucial to follow the recommended compensation network, use a low-ESR output capacitor, and ensure the input and output capacitors are properly sized. Additionally, avoid using long input traces and keep the feedback network as short as possible.
The maximum input voltage rating for the HPA01116RHBR is 42V, but it's recommended to operate within the specified input voltage range (12V to 36V) for optimal performance and reliability.
The HPA01116RHBR is rated for operation up to 150°C, but it's essential to consider the thermal design and ensure proper heat sinking to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's crucial to consult the datasheet for temperature-related specifications.
The HPA01116RHBR has built-in overcurrent protection, but it's still recommended to add external protection, such as a fuse or a current-sensing resistor, to prevent damage from excessive current. Additionally, ensure the output is properly decoupled to prevent back-EMF damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HPA01116RHBR Overview

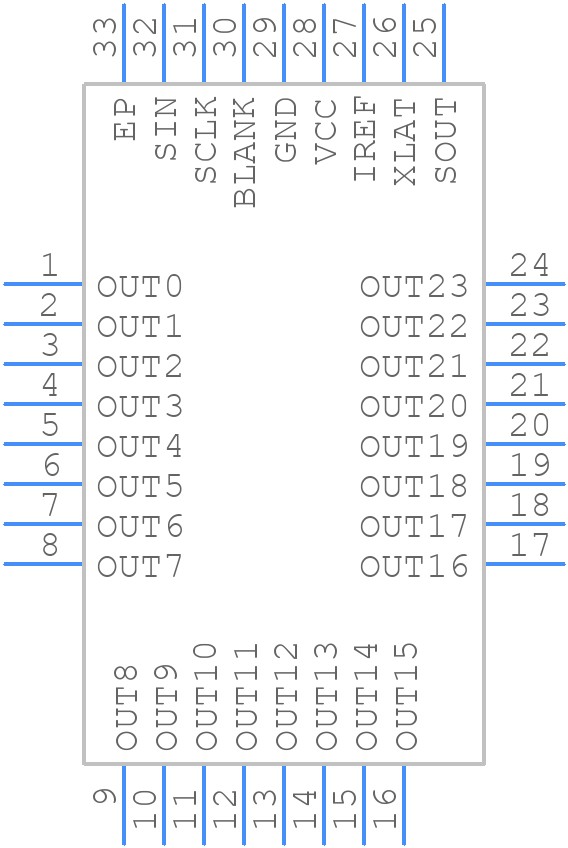

Use the download button to access the HPA01116RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HPA01,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
