HPC46100VF40 - Texas Instruments

HPC46100VF40 Details

• Manufacturer Part Number:

  HPC46100VF40

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

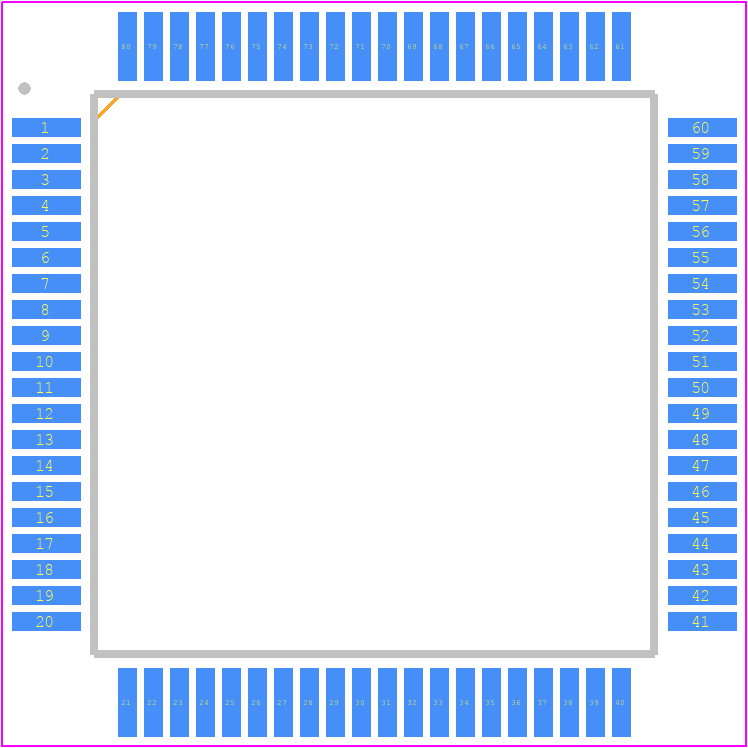

• Package Description:

  QFP, QFP80,.7SQ

• Reach Compliance Code:

  Unknown

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  16

• Bit Size:

  16

• CPU Family:

  HPC

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G80

• JESD-609 Code:

  e0

• Length:

  14 mm

• Number of I/O Lines:

  31

• Number of Terminals:

  80

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1024

• Seated Height-Max:

  2.26 mm

• Speed:

  40 MHz

• Supply Current-Max:

  65 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
