The recommended mating sequence is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the HPF-12-01-H-S connector is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
The HPF-12-01-H-S connector is rated for operation in temperatures ranging from -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
Yes, the HPF-12-01-H-S connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The lead time for delivery of the HPF-12-01-H-S connector can vary depending on the quantity, location, and availability. Typically, it ranges from 2-6 weeks. It's recommended to check with Samtec Inc or authorized distributors for the most up-to-date lead times.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HPF-12-01-H-S Overview

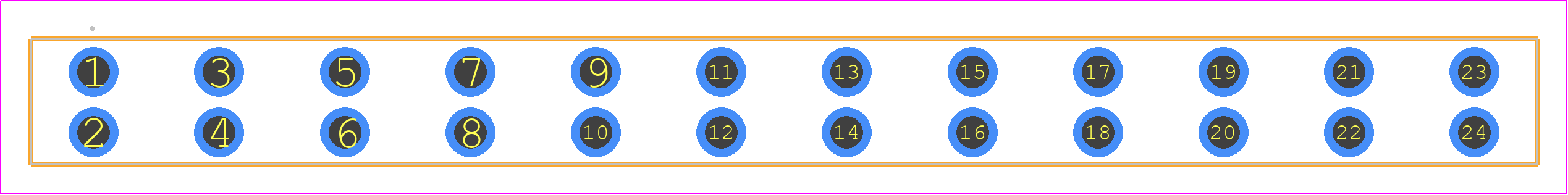

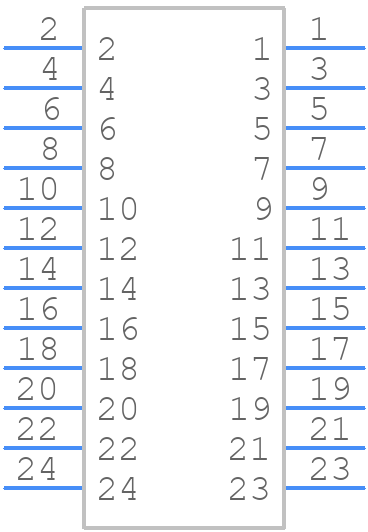

Use the download button to access the HPF-12-01-H-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HPF-1,
or try a keyword search, such as Power Connectors
