The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the HPF-12-01-T-S connector, as specified in the Samtec application notes.
Yes, the HPF-12-01-T-S connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
Yes, the HPF-12-01-T-S connector is compatible with lead-free soldering processes. Samtec ensures that their connectors meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The maximum operating temperature of the HPF-12-01-T-S connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to derate the connector's performance at higher temperatures.
The HPF-12-01-T-S connector is not designed for use in humid or wet environments. It's recommended to use a connector with a higher IP rating (e.g., IP67 or higher) for applications that require resistance to moisture or water ingress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HPF-12-01-T-S Overview

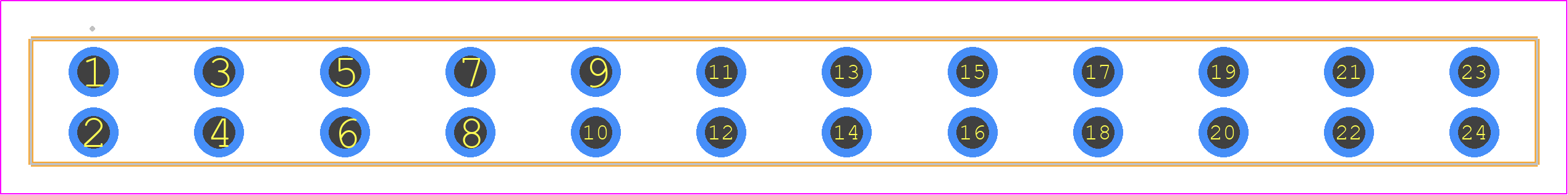

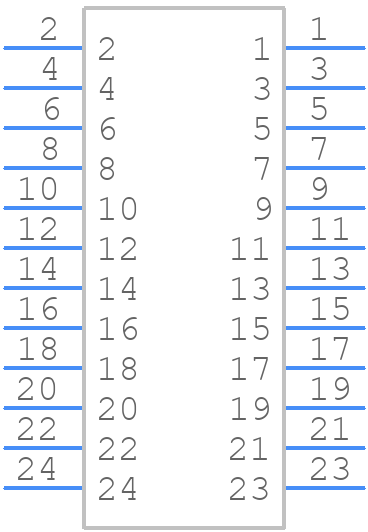

Use the download button to access the HPF-12-01-T-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HPF-1,
or try a keyword search, such as Power Connectors
