HPF-15-01-T-S footprint, schematic symbol and 3D model by SAMTEC

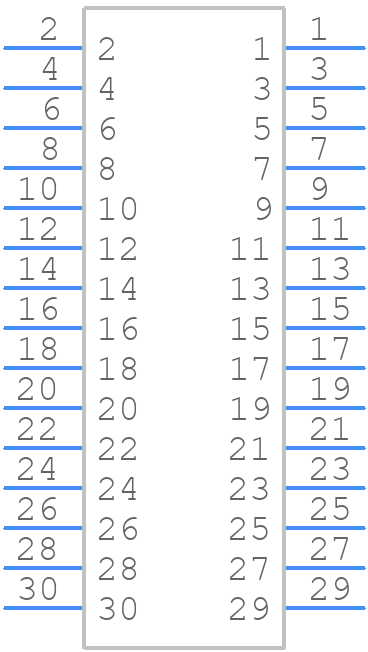

Symbol

click to zoom

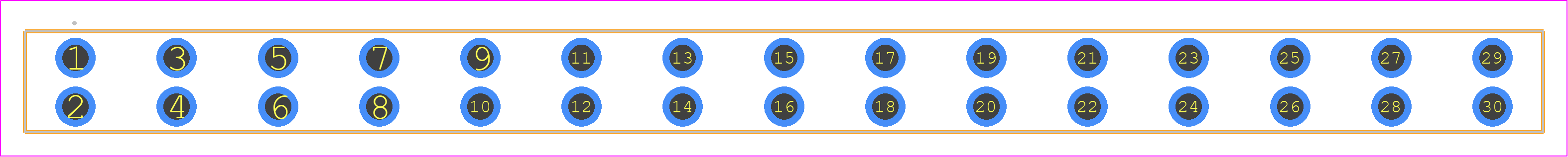

PCB Footprints

HPF-15-01-T-S - SAMTEC PCB footprint - Other - Other - HPF-15-XX-YY-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HPF-15-01-T-S
Part Number HPF-15-01-T-S
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - HPF-15-XX-YY-S
Released Date Jun 21, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HPF-15-01-T-S Details

Manufacturer Part Number:
HPF-15-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Costa Rica, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7
Additional Feature:
POWER EYE CONTACT
Body Breadth:
0.2 inch
Body Depth:
0.351 inch
Body Length:
3 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P15
Contact Finish Mating:
TIN OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
15.568 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE
Reference Standard:
CSA, UL
Terminal Length:
0.096 inch
Termination Type:
SOLDER
Total Number of Contacts:
15
Withdrawl Force-Min:
14.456 N

HPF-15-01-T-S Frequently Asked Questions (FAQs)

The recommended torque is 1.5-2.5 in-lbs (0.17-0.28 Nm) for the screws on the HPF-15-01-T-S connector, as specified in the Samtec application notes.
Yes, the HPF-15-01-T-S connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in harsh conditions.
The HPF-15-01-T-S connector has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the HPF-15-01-T-S connector is compatible with lead-free soldering processes, including RoHS and WEEE compliant soldering techniques.
The HPF-15-01-T-S connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections even in applications with frequent mating and unmating.
