HPF-20-01-T-S footprint, schematic symbol and 3D model by SAMTEC

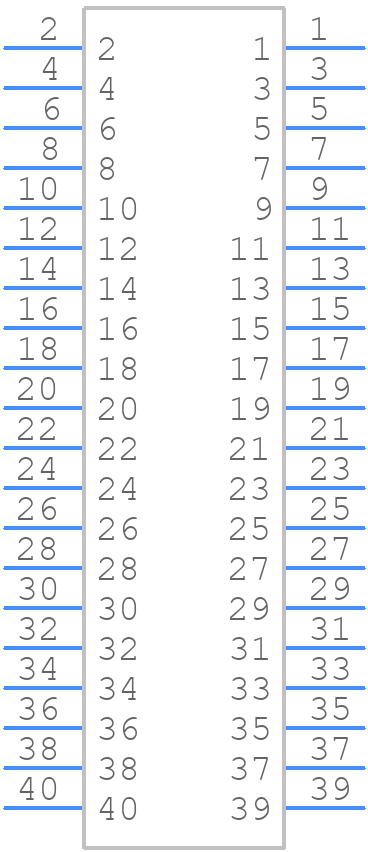

Symbol

click to zoom

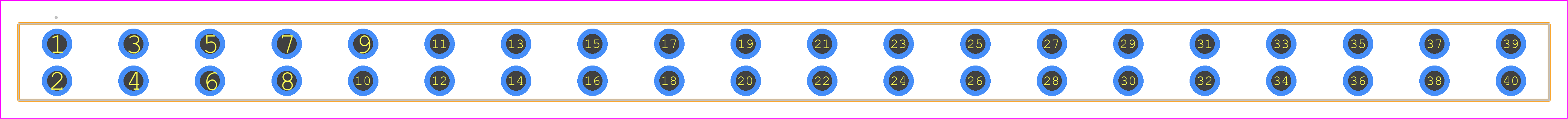

PCB Footprints

HPF-20-01-T-S - SAMTEC PCB footprint - Other - Other - HPF-20-XX-YY-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HPF-20-01-T-S
Part Number HPF-20-01-T-S
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - HPF-20-XX-YY-S
Released Date Jun 21, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HPF-20-01-T-S Details

Manufacturer Part Number:
HPF-20-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Costa Rica
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7
Additional Feature:
POWER EYE CONTACT
Body Breadth:
0.2 inch
Body Depth:
0.351 inch
Body Length:
4 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P20
Contact Finish Mating:
TIN OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
15.568 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE
Reference Standard:
CSA, UL
Terminal Length:
0.096 inch
Termination Type:
SOLDER
Total Number of Contacts:
20
Withdrawl Force-Min:
14.456 N

HPF-20-01-T-S Frequently Asked Questions (FAQs)

The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the HPF-20-01-T-S connector, as specified in the Samtec application notes.
Yes, the HPF-20-01-T-S connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in harsh conditions.
The HPF-20-01-T-S connector has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the HPF-20-01-T-S connector is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. Samtec recommends following the recommended soldering profiles to ensure reliable connections.
The HPF-20-01-T-S connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand humid or wet environments. However, it's essential to follow proper handling and storage procedures to prevent moisture ingress.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HPF-20-01-T-S Overview

Use the download button to access the HPF-20-01-T-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HPF-2, or try a keyword search, such as Power Connectors
