XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the HRL3024S1K5P is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which simulates vibrations up to 10 G peak acceleration.
To ensure reliability in high-temperature applications, XP Power recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module and avoid exceeding the maximum operating temperature of 100°C.
XP Power recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and system requirements. The fuse should be able to handle the module's peak inrush current of 30A.
Yes, the HRL3024S1K5P can be paralleled to increase the output power. However, XP Power recommends using a master-slave configuration to ensure stable operation and to prevent oscillations. A maximum of 5 modules can be paralleled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HRL3024S1K5P Overview

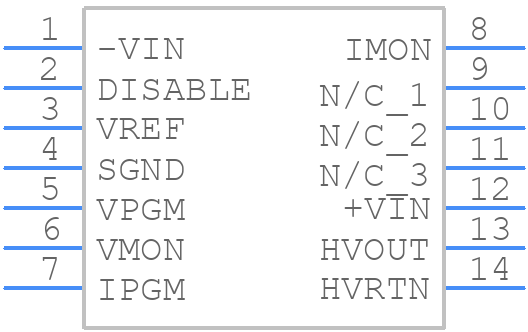

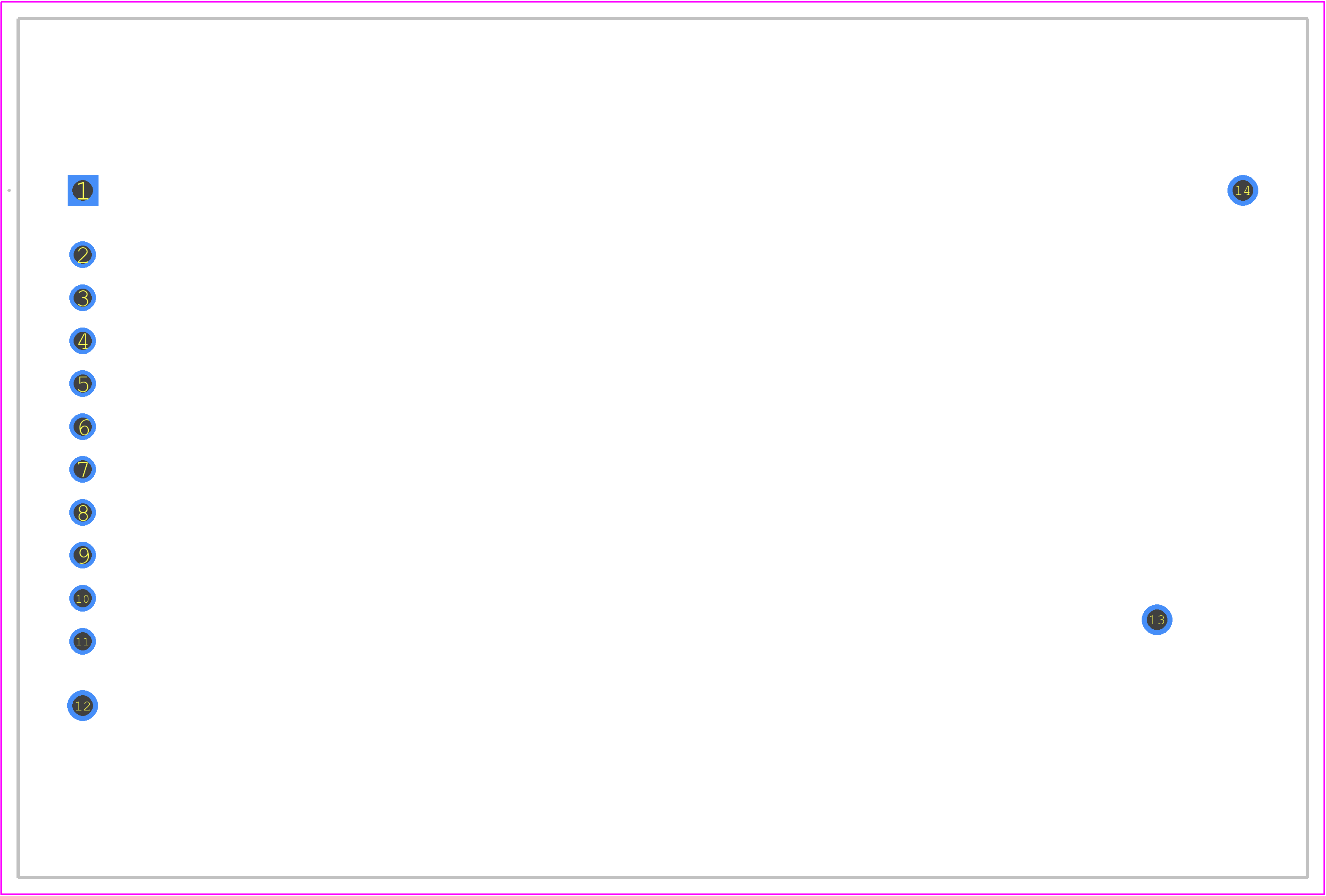

Use the download button to access the HRL3024S1K5P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HRL30,
or try a keyword search, such as Power Supply Modules
