HRL3024S2K0N - XP POWER

Description: Isolated DC/DC Converters - Other HV DC-DC 30W 2000V

Download HRL3024S2K0N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

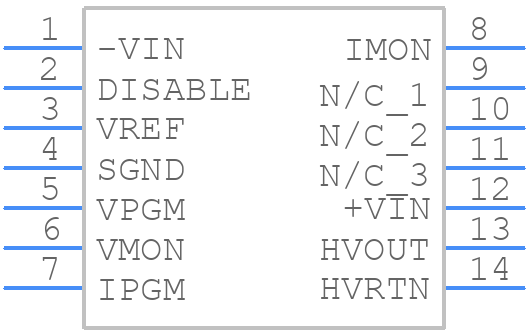

HRL3024S2K0N - XP POWER - PCB symbol
click to zoom
PCB Footprints
HRL3024S2K0N - XP POWER PCB footprint - Other - Other - HRL3024S2K0N-2
click to zoom
3D Models
HRL3024S2K0N - XP POWER - 3D model - Other - HRL3024S2K0N-2
click to zoom

HRL3024S2K0N Details

  • Manufacturer Part Number:

    HRL3024S2K0N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HRL3024S2K0N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the HRL3024S2K0N is -20°C to +70°C, with derating above 50°C.
  • Yes, the HRL3024S2K0N is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
  • Yes, the HRL3024S2K0N meets the EN 55032 Class B EMC standard for conducted and radiated emissions, making it suitable for use in applications that require a high level of EMC.
  • The minimum load requirement for the HRL3024S2K0N is 10% of the maximum rated output current.
  • No, the HRL3024S2K0N is not designed to be paralleled to increase the output power. Attempting to do so may damage the power supply or affect its reliability.
