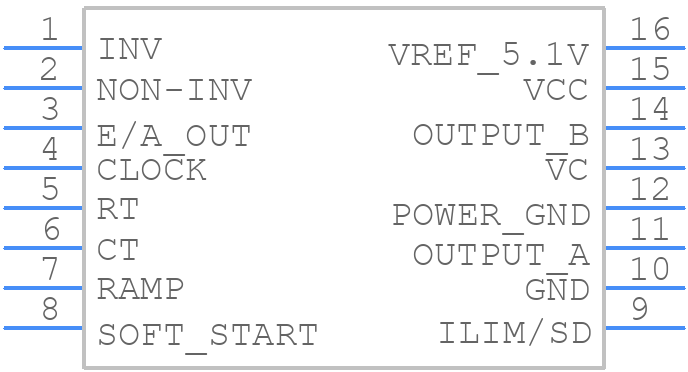

HS1-1825AEH-Q - Renesas Electronics

HS1-1825AEH-Q Details

• Manufacturer Part Number:

  HS1-1825AEH-Q

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SBDIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  D16.3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT/VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  30 V

• Input Voltage-Min:

  12 V

• JESD-30 Code:

  R-CDIP-T16

• JESD-609 Code:

  e4

• Length:

  21.34 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -50 °C

• Output Current-Max:

  1 A

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Screening Level:

  MIL-PRF-38535 Class V

• Seated Height-Max:

  5.08 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  500 kHz

• Technology:

  BICMOS

• Terminal Finish:

  GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Dose:

  300k Rad(Si) V

• Width:

  7.62 mm
