Description:The HS-201HSRH and HS-201HSEH are monolithic BiCMOS analog switches featuring power-off high input impedance, very fast switching speeds and low ON-resistance. Fabrication on our DI RSG process ensures SEL immunity and only very slight low dose rate sensitivity (ELDRS). These Class V/Q devices are tested and guaranteed for 300krad(Si) total dose performance. Power-off high input impedance enables the use of this device in redundant circuits without causing data bus signal degradation. ESD protection, overvo
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
To handle the high current requirements, it's essential to use a robust power supply design, including a sufficient DC-DC converter, capacitors, and a low-ESR output capacitor. Additionally, ensure the PCB traces and vias can handle the high current density.
Renesas recommends following the IEC 61000-4-2 standard for ESD protection, which includes using ESD protection devices, such as TVS diodes, and designing the PCB with ESD protection in mind, including component placement and routing.
While the HS1-201HSRH-8 is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments. Consult the datasheet and application notes for more information.
Renesas provides a troubleshooting guide in their application notes, which includes steps to identify and resolve common issues, such as power supply problems, thermal issues, and layout-related problems. Additionally, consult the datasheet and contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HS1-201HSRH-8 Overview

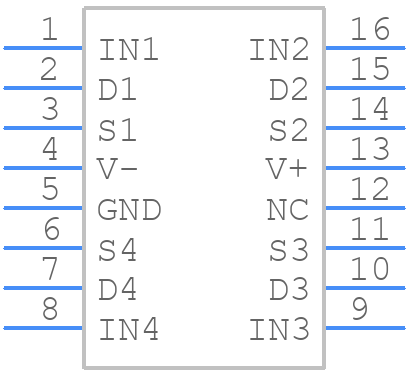

Use the download button to access the HS1-201HSRH-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HS1-2,
or try a keyword search, such as Multiplexers or Switches
