Description:The HS-508BRH, HS-508BEH are dielectrically isolated, radiation hardened, CMOS analog multiplexers incorporating an important feature; they withstand analog input voltages much greater than the supplies. This is essential in any system where the analog inputs originate outside the equipment. They can withstand a continuous input up to 10V greater than either supply, which eliminates the possibility of damage when supplies are off, but input signals are present. Equally important, they can withstand brief in
Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal management techniques such as thermal throttling or shutdown. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
The HS1-508BRH-Q has built-in ESD protection diodes and latch-up prevention circuits. However, it's still recommended to follow proper ESD handling procedures during assembly and testing, and to use ESD protection devices such as TVS diodes or ESD arrays in the system design.
The HS1-508BRH-Q is not specifically designed or qualified for radiation-hardened or high-reliability applications. If you need a radiation-hardened or high-reliability device, consider using a different part from Renesas or other manufacturers that are specifically designed and qualified for such applications.
Renesas provides a recommended soldering and assembly guide in their application note (APL-AN-115) which includes guidelines for reflow soldering, wave soldering, and manual assembly. It's essential to follow these guidelines to ensure reliable connections and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HS1-508BRH-Q Overview

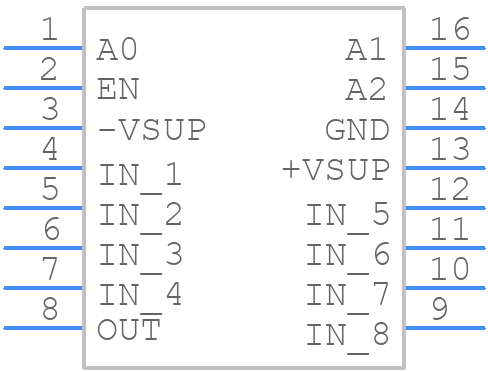

Use the download button to access the HS1-508BRH-Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HS1-5,
or try a keyword search, such as Multiplexers or Switches
