HS4101 - Renesas Electronics

Description: Relative Humidity and Temperature Sensor, Analog Output, ±1.5% RH

Download HS4101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

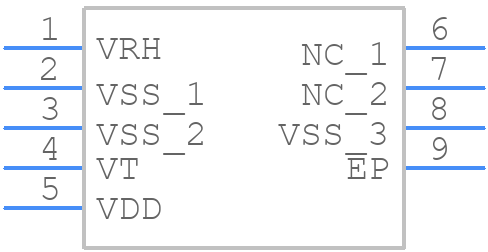

HS4101 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HS4101 - Renesas Electronics PCB footprint - Other - Other - HS4101-1
click to zoom
3D Models
HS4101 - Renesas Electronics - 3D model - Other - HS4101-1
click to zoom

HS4101 Details

  • Manufacturer Part Number:

    HS4101

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Pin Count:

    8

  • Manufacturer Package Code:

    LVG8D3

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Accuracy-Max (%):

    1.8%

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.72 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD

HS4101 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for HS4101 is -40°C to 125°C, but it can operate up to 150°C with derating.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink if necessary, and consider derating the device's power consumption.
  • The maximum allowable voltage for HS4101's input pins is 5.5V, but it's recommended to keep the input voltage within the specified operating range to ensure reliable operation.
  • To handle ESD protection for HS4101, it's recommended to follow proper ESD handling procedures, use ESD-protected equipment, and consider adding external ESD protection devices if necessary.
  • To minimize noise and interference, it's recommended to follow a good PCB layout practice, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive signals away from noisy signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HS4101 Overview

Use the download button to access the HS4101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HS410, or try a keyword search, such as Other Sensors/Transducers
