HS4103 - Renesas Electronics

Description: The HS4103 is a highly accurate, ultra-low power, fully calibrated relative humidity and temperature sensor. The MEMS sensor features a proprietary sensor-level protection ensuring high reliability and long-term stability. The HS4103 is fully calibrated and temperature compensated with an Analog ratio-metric output.

Download HS4103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

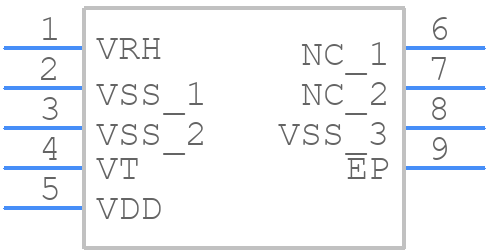

HS4103 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HS4103 - Renesas Electronics PCB footprint - Other - Other - HS4103-1
click to zoom
3D Models
HS4103 - Renesas Electronics - 3D model - Other - HS4103-1
click to zoom

HS4103 Details

  • Manufacturer Part Number:

    HS4103

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Pin Count:

    8

  • Manufacturer Package Code:

    LVG8D3

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Accuracy-Max (%):

    3.5%

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.72 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD

HS4103 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for HS4103 is 4.5V to 5.5V, with a typical voltage of 5V.
  • To ensure reliable communication, make sure to follow the recommended clock frequency, data transmission protocol, and signal integrity guidelines. Also, use a suitable pull-up resistor value for the SCL line and ensure proper termination of the SDA line.
  • The HS4103 supports a maximum clock frequency of 400 kHz in Fast Mode and 100 kHz in Standard Mode.
  • The HS4103 has built-in arbitration logic to handle bus contention. In case of contention, the device with the higher priority will gain control of the bus. It's essential to follow the I2C bus protocol and ensure that only one master device is transmitting data at a time.
  • The internal pull-up resistors in HS4103 are used to pull up the SCL and SDA lines to the positive supply voltage (VCC) when the lines are not being driven by the master or slave devices. This helps to prevent the lines from floating and ensures proper signal integrity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HS4103 Overview

Use the download button to access the HS4103 schematic symbol, PCB footprint, and 3D model.
