HS8K11TB - ROHM Semiconductor

Description: 30V Nch+Nch Power MOSFET

Download HS8K11TB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

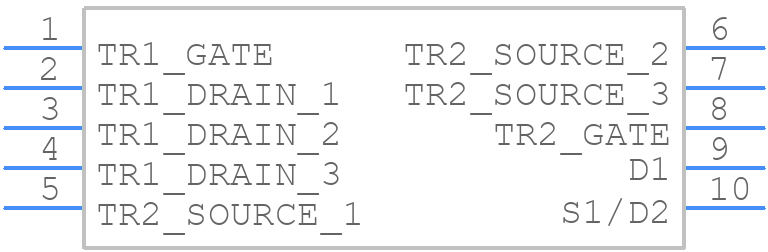

Symbol
HS8K11TB - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
HS8K11TB - ROHM Semiconductor PCB footprint - Other - Other - HSML3030L10_2022
click to zoom
3D Models
HS8K11TB - ROHM Semiconductor - 3D model - Other - HSML3030L10_2022
click to zoom

HS8K11TB Details

  • Manufacturer Part Number:

    HS8K11TB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, HSML3030L10, 8 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    3.6 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    COMPLEX

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7 A

  • Drain-source On Resistance-Max:

    0.0291 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    28 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

HS8K11TB Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2mm x 2mm, with a minimum of 10 thermal vias (0.3mm diameter) connecting to a solid copper plane on the bottom layer. This ensures efficient heat dissipation and reduces thermal resistance.
  • To accommodate the high current handling of the HS8K11TB, use thick copper traces (at least 1oz) and ensure the PCB has a sufficient number of layers to distribute the current. Additionally, consider using a copper pour or a dedicated power plane to reduce resistance and inductance.
  • ROHM recommends a soldering temperature of 260°C (500°F) with a maximum soldering time of 10 seconds. This ensures reliable solder joints and prevents damage to the device.
  • While the HS8K11TB is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (>80% RH) without proper protection. Consider using a conformal coating or potting compound to prevent moisture ingress and ensure reliable operation.
  • To prevent ESD damage, handle the HS8K11TB with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded. During assembly, use an ESD-protected workstation and follow proper ESD handling procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HS8K11TB Overview

Use the download button to access the HS8K11TB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HS8K1, or try a keyword search, such as Power Field-Effect Transistors
