HS8K1TB - ROHM Semiconductor

Description: Nch+Nch Power MOSFET, HSML3030L10, VDSS: 30V,RDS(on)(Max.)1: 14.6mΩ, RDS(on)(Max.)2: 11.8mΩ,ID1: ±10A, ID2: ±11A,PD:2.0W.

Download HS8K1TB Model

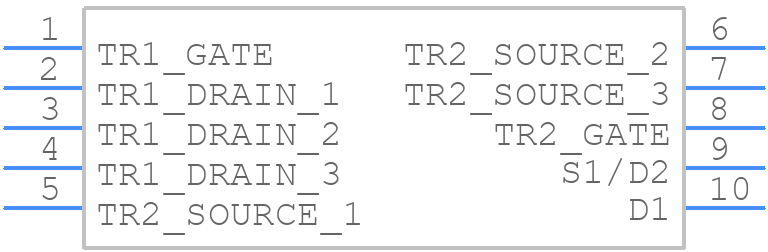

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HS8K1TB - ROHM Semiconductor PCB footprint - Other - Other - HS8K1TB
click to zoom
3D Models
HS8K1TB - ROHM Semiconductor  - 3D model - Other - HS8K1TB
click to zoom

HS8K1TB Details

  • Manufacturer Part Number:

    HS8K1TB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    7.6 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    COMPLEX

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.02 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

HS8K1TB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for HS8K1TB is 4.5V to 5.5V.
  • The HS8K1TB has a built-in POR circuit, which ensures that the device is properly reset during power-up. No external POR circuit is required.
  • The HS8K1TB supports a maximum clock frequency of 20 MHz.
  • The HS8K1TB can be interfaced with a microcontroller using a standard SPI (Serial Peripheral Interface) bus.
  • The WP pin is used to prevent accidental writes to the device. When WP is low, the device is write-protected.
