HSEC8-160-01-L-RA-BL - SAMTEC

Description: 120 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black , -55°C ~ 125°C

Download HSEC8-160-01-L-RA-BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSEC8-160-01-L-RA-BL - SAMTEC - PCB symbol
click to zoom
PCB Footprints

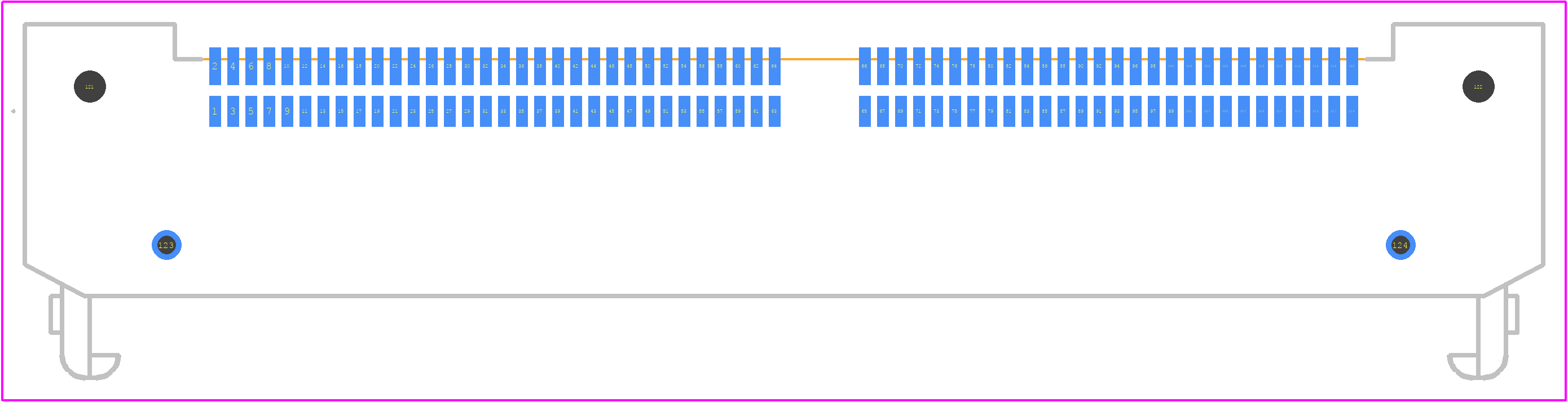

HSEC8-160-01-L-RA-BL - SAMTEC PCB footprint - Other - Other - HSEC8-160-01-L-RA-BL-4
click to zoom
3D Models
HSEC8-160-01-L-RA-BL - SAMTEC - 3D model - Other - HSEC8-160-01-L-RA-BL-4
click to zoom

HSEC8-160-01-L-RA-BL Details

  • Manufacturer Part Number:

    HSEC8-160-01-L-RA-BL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 4 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    CARD EDGE CONNECTOR

HSEC8-160-01-L-RA-BL Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the HSEC8-160-01-L-RA-BL connector is 0.5-1.5 N·m (4-12 in·lb).
  • Yes, the HSEC8-160-01-L-RA-BL connector is designed to support high-speed signals up to 10 Gbps.
  • The operating temperature range for the HSEC8-160-01-L-RA-BL connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the HSEC8-160-01-L-RA-BL connector is designed to withstand harsh environments, including vibration, shock, and moisture.
  • The mating cycle life of the HSEC8-160-01-L-RA-BL connector is 500 cycles minimum.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSEC8-160-01-L-RA-BL Overview

Use the download button to access the HSEC8-160-01-L-RA-BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSEC8, or try a keyword search, such as Headers and Edge Type Connectors
