The recommended PCB layout and thermal management for HSMP-3866-TR1G involves using a 4-layer PCB with a solid ground plane, placing thermal vias under the device, and using a heat sink or thermal pad to dissipate heat. Refer to the application note AN1165 from Broadcom for more details.
To optimize the performance of HSMP-3866-TR1G in a high-frequency application, ensure that the device is properly matched to the transmission line, use a low-loss substrate, and minimize the length of the transmission lines. Additionally, use a high-frequency capable PCB material and follow the recommended layout guidelines from Broadcom.
The maximum operating temperature range for HSMP-3866-TR1G is -40°C to 125°C. However, the device can be operated at a reduced performance level up to 150°C for short periods of time.
To handle the ESD sensitivity of HSMP-3866-TR1G, follow standard ESD handling procedures, use ESD-protective packaging and materials, and ensure that all personnel handling the device are grounded. Additionally, use an ESD wrist strap or mat during assembly and handling.
The recommended soldering and rework conditions for HSMP-3866-TR1G involve using a soldering iron with a temperature of 260°C to 280°C, and a soldering time of 3-5 seconds. For rework, use a hot air rework station with a temperature of 220°C to 250°C and a rework time of 10-15 seconds.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HSMP-3866-TR1G Overview

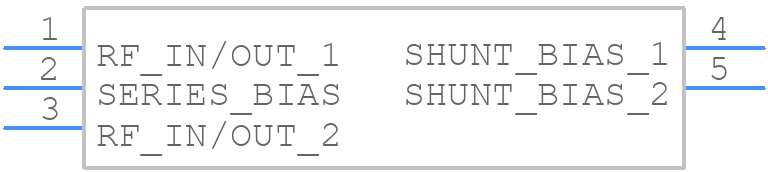

Use the download button to access the HSMP-3866-TR1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSMP-,
or try a keyword search, such as PIN Diodes
