HSP061-4M10Y - STMicroelectronics

Description: STMICROELECTRONICS - HSP061-4M10Y - ESD PROTECTION, 15V, UQFN-10

Download HSP061-4M10Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

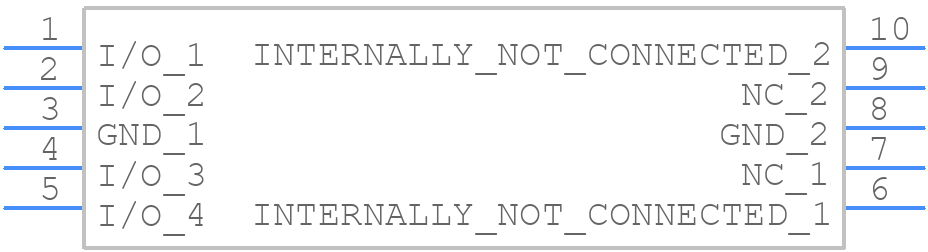

Symbol
HSP061-4M10Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HSP061-4M10Y - STMicroelectronics PCB footprint - Other - Other - µQFN-10L
click to zoom
3D Models
HSP061-4M10Y - STMicroelectronics - 3D model - Other - µQFN-10L
click to zoom

HSP061-4M10Y Details

  • Manufacturer Part Number:

    HSP061-4M10Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

HSP061-4M10Y Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HSP061-4M10Y is 2.7V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the thermal management guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum current rating for the HSP061-4M10Y is 10mA per output, with a total current limit of 40mA for all outputs combined.
  • The HSP061-4M10Y has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.
  • The recommended layout and routing for the HSP061-4M10Y involves keeping the device as close as possible to the power supply, using short and wide traces for power and ground, and avoiding vias and right-angle bends in the signal traces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSP061-4M10Y Overview

Use the download button to access the HSP061-4M10Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSP06, or try a keyword search, such as Transient Suppressors
