HSP061-4NY8 - STMicroelectronics

Description: 4-Line ESD Protection Hi-Speed Mini-QFN8 STMicroelectronics HSP061-4NY8 Quad TVS Diode Array, 8-Pin uQFN

Download HSP061-4NY8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

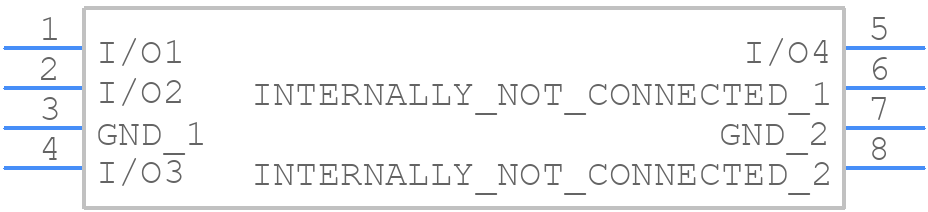

HSP061-4NY8 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
HSP061-4NY8 - STMicroelectronics PCB footprint - Other - Other - µQFN-8L
click to zoom
3D Models
HSP061-4NY8 - STMicroelectronics - 3D model - Other - µQFN-8L
click to zoom

HSP061-4NY8 Details

  • Manufacturer Part Number:

    HSP061-4NY8

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Breakdown Voltage-Min:

    6 V

  • Clamping Voltage-Max:

    18 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N7

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

HSP061-4NY8 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HSP061-4NY8 is 4.5V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption and ensure good thermal management, such as using a heat sink or thermal interface material.
  • The maximum current rating for the HSP061-4NY8 is 1A per channel, with a total current limit of 2A for the entire device.
  • To protect the HSP061-4NY8 from ESD, it is recommended to handle the device in an ESD-protected environment, use ESD-protective packaging, and ensure that all equipment and tools are properly grounded.
  • The recommended PCB layout and routing for the HSP061-4NY8 involves using a multi-layer PCB with a solid ground plane, keeping signal traces short and direct, and using decoupling capacitors to minimize noise and oscillations.
