HT16K33A-28SSOP - Holmate Technology Corp. (Holtek)

Description: • Operating voltage: 4.5V~5.5V • Integrated RC oscillator • I2 C bus interface • 16×8 bits RAM for display data storage • Max. 16×8 patterns, 16 segments and 8 commons • R/W address auto increment • Max. 13×3 matrix key scanning • 16-step dimming circuit • Package types: 20/24/28-pin SOP/SSOP

Download HT16K33A-28SSOP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HT16K33A-28SSOP model

Email notifications will be applied after download.

Send part feedback

Symbol

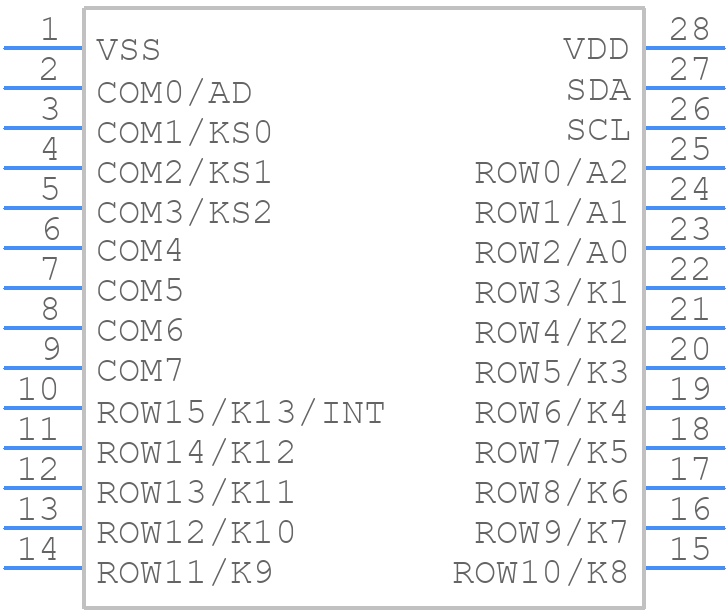

HT16K33A-28SSOP - Holmate Technology Corp. (Holtek) - PCB symbol

PCB Footprints

HT16K33A-28SSOP - Holmate Technology Corp. (Holtek) PCB footprint - Small Outline Packages - Small Outline Packages - 28-pin SSOP (150mil)

3D Models

HT16K33A-28SSOP - Holmate Technology Corp. (Holtek) - 3D model - Small Outline Packages - 28-pin SSOP (150mil)

Datasheet Download Datasheet
Stock & Prices Price & Stock for HT16K33A-28SSOP
Part Number HT16K33A-28SSOP
Manufacturer Holmate Technology Corp. (Holtek)
Pin Count 28
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 28-pin SSOP (150mil)
Released Date Jul 16, 2024
Last Modified Date Jul 16, 2024 9:03 AM UTC
Pinout / Pin List Click Here (Member Only)

HT16K33A-28SSOP Details

Manufacturer Part Number:
HT16K33A-28SSOP
Manufacturer:
Holtek Semiconductor Inc

Trust Checks

Community Provided

System Verified

Community Approved

HT16K33A-28SSOP Overview

Use the download button to access the HT16K33A-28SSOP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HT16K, or try a keyword search, such as Display Drivers
